Same model may have multiple batches, images only for reference.

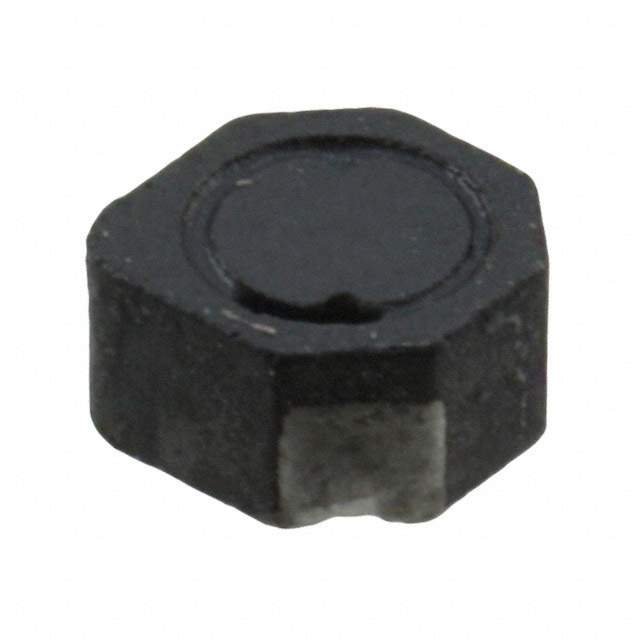

SD3118-3R3-R Real Image
Same model may have multiple batches, images only for reference.

SD3118-3R3-R

Part No SD3118-3R3-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 3.3UH 1.22A 113 MOHM
Datasheet
SD3118-3R3-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±30%
Current Rating 1.22A
Current - Saturation 1.59A
DC Resistance (DCR) 113 mOhm
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 042553-SD3118-3R3-R
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SD3118
Introduction Date April 07, 2006
ECCN EAR99
Country of Origin China
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian SD3118-3R3-R CAD Model

Description

The Eaton Bussmann 042553-SD3118-3R3-R is a wirewound inductor that has a current rating of 1.22A and an inductance of 3.3μH.

  • Current Rating: 1.22A
  • Inductance: 3.3μH
  • Core Material: ferrite
  • Tolerance: ±30%
  • DC Resistance: 113 mOhm
  • Temperature Range: -40°C to 125°C
  • Mounting: SMD (SMT)
  • Packaging: reel
  • Family Name: SD3118
