Same model may have multiple batches, images only for reference.

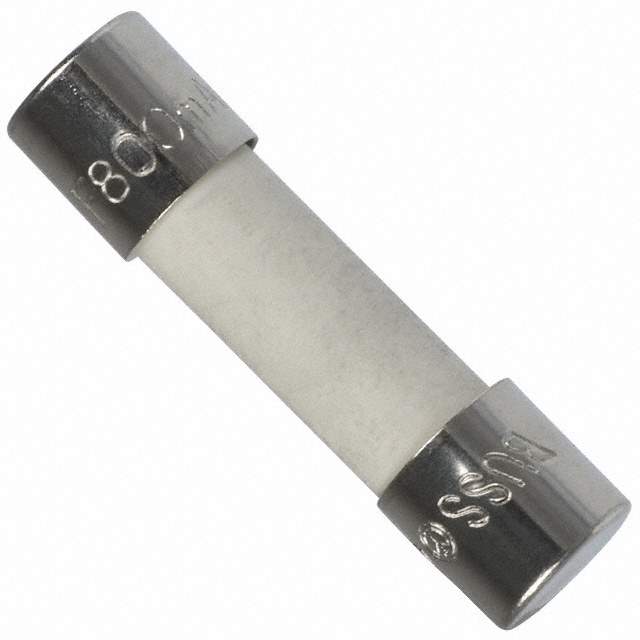

S501-63-R Real Image
Same model may have multiple batches, images only for reference.

S501-63-R

Part No S501-63-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE CERAMIC 63MA 250VAC 5X20MM / 63 mA 250 V AC DC Fuse Cartridge, Ceramic Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Eaton - Electronics Division
Series S501
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 63 mA
Voltage Rating - AC 250 V
Response Time Fast Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 0.0005
Approval Agency CCC, CSA, cULus
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 39 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Standard Package 5
Win Source Part Number 1090173-S501-63-R
Ultra Librarian 3D Model Ultra Librarian S501-63-R CAD Model

Description

The S501-63-R is a cartridge ceramic fuse manufactured by Eaton - Electronics Division.

  • Package: Bulk
  • Fuse Type: Fast Blow
  • Voltage Rating - AC: 250 V
  • Breaking Capacity @ Rated Voltage: 1.5kA
  • DC Cold Resistance: 39 Ohms
  • Current Rating: 63 mA
  • Dimension: 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
  • Mounting: Holder
  • Operating Temperature: Not Specified
  • RoHS Compliant: Yes
  • Approvals: CCC, CSA, and cULus
