Same model may have multiple batches, images only for reference.

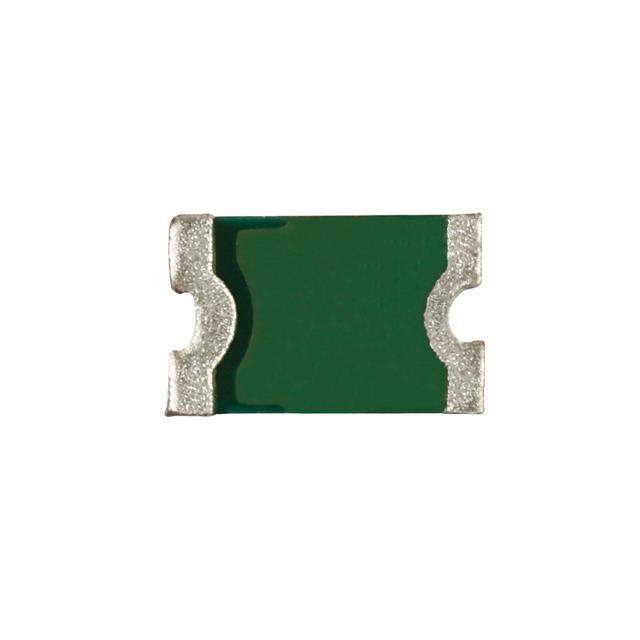

PTSA080515V010 Real Image
Same model may have multiple batches, images only for reference.

PTSA080515V010

Part No PTSA080515V010
Manufacturer Eaton Bussmann
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 100MA 15V 0805 / PTC Resettable Fuse 15V 100 mA Ih Surface Mount 0805 (2012 Metric), Concave
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Eaton - Electronics Division
Series PTSA0805
Package Tape & Reel
Voltage - Max 15V
Current - Max 10 A
Current - Hold (Ih) (Max) 100 mA
Current - Trip (It) 300 mA
Time to Trip 2 s
Resistance - Initial (Ri) (Min) 500 mOhms
Resistance - Post Trip (R1) (Max) 10 Ohms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric), Concave
Dimension 0.089" L x 0.059" W (2.25mm x 1.50mm)
Thickness (Max) 0.039" (1.00mm)
Approval Agency UL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 283-PTSA080515V010DKR,283-PTSA080515V010CT,283-PTSA080515V010TR
Standard Package 4,000
Win Source Part Number 1117216-PTSA080515V010
Ultra Librarian 3D Model Ultra Librarian PTSA080515V010 CAD Model

Description

The Eaton - Electronics Division PTSA080515V010 is a PTC resettable fuse with a voltage rating of 15V and a maximum current of 10A.

  • Voltage Rating: 15V
  • Maximum Current: 10A
  • Current Hold: 100mA
  • Current Trip: 300mA
  • Time to Trip: 2s
  • Package/Case: 0805 (2012 Metric), Concave
  • Dimensions: 0.089" L x 0.059" W (2.25mm x 1.50mm)
  • Thickness: 0.039" (1.00mm)
  • Initial Resistance: 500 mOhms
  • Post-Trip Resistance: 10 Ohms
  • Suitable for: Circuit protection
  • Popularity: Low
