Same model may have multiple batches, images only for reference.

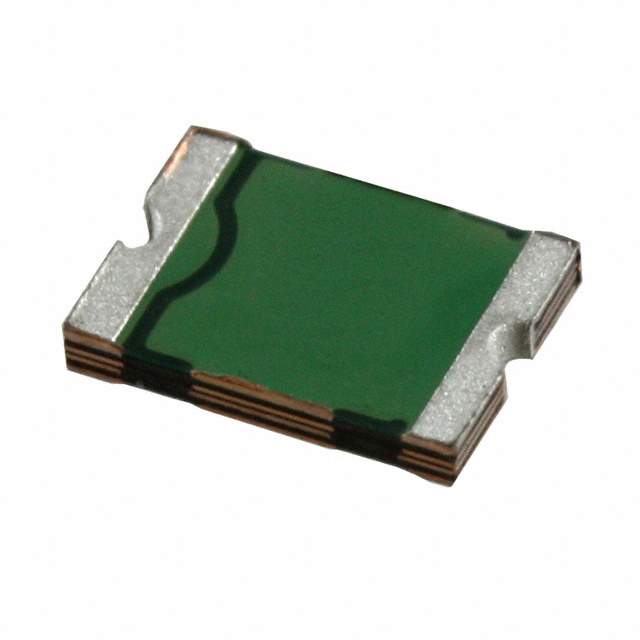

PTS181216V035 Real Image
Same model may have multiple batches, images only for reference.

PTS181216V035

Part No PTS181216V035
Manufacturer Eaton Bussmann
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 16V 350MA 1812 / Polymeric PTC Resettable Fuse 16V 350 mA Ih Surface Mount 1812 (4532 Metric), Concave
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Eaton - Electronics Division
Series PTS1812
Package Tape & Reel
Type Polymeric
Voltage - Max 16V
Current - Max 100 A
Current - Hold (Ih) (Max) 350 mA
Current - Trip (It) 700 mA
Time to Trip 100 ms
Resistance - Initial (Ri) (Min) 320 mOhms
Resistance - Post Trip (R1) (Max) 1.5 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 1812 (4532 Metric), Concave
Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.027" (0.68mm)
Approval Agency cURus, TUV
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Names 283-3149-1,283-3149-6,283-3149-2
Standard Package 2,000
Win Source Part Number 1086283-PTS181216V035
Ultra Librarian 3D Model Ultra Librarian PTS181216V035 CAD Model

Description

The PTS1812 series is a polymeric PTC resettable fuse designed for circuit protection in electronic components. PTS1812 series is a polymeric PTC resettable fuse. Eaton Electronics Division's manufactures it.

  • Voltage (Max): 16V
  • Current (Max): 100A
  • Thickness: 0.027 inches (0.68mm)
  • Package/Case Size: 1812 (4532 Metric), Concave
  • Operating Temperature: -40°C to 85°C
  • Time to Trip: 100ms
  • Resistance - Initial (Ri) (Min): 320 mOhms
  • Resistance - Post-Trip (R1) (Max): 1.5 Ohms
