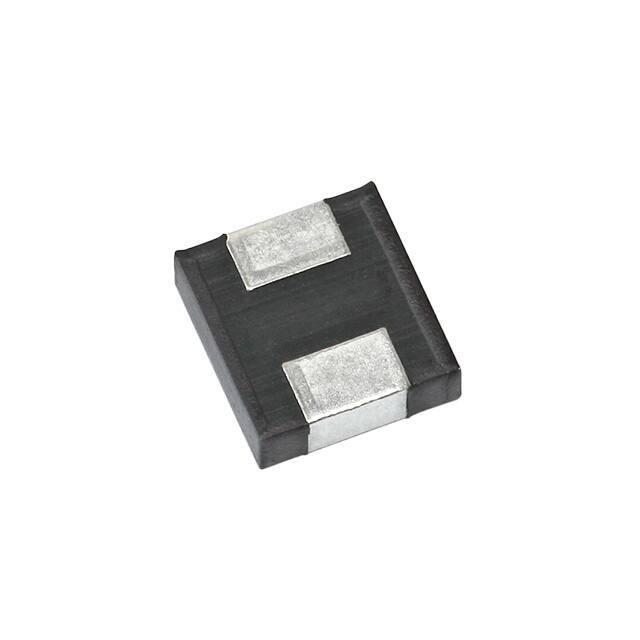

MPIA4040R4-3R3-R
Same model may have multiple batches, images only for reference.

MPIA4040R4-3R3-R

Part No MPIA4040R4-3R3-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 3.3UH 3.3A 49 MOHM SMD / 3.3 μH Shielded Molded Inductor 3.3 A 49mOhm Nonstandard
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Eaton Bussmann
Series MPIA4040
Package Tape & Reel
Product Status Obsolete
Type Molded
Material - Core Metal Composite
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 3.3 A
Current - Saturation (Isat) 4.5A
Shielding Shielded
DC Resistance (DCR) 49mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 885795-MPIA4040R4-3R3-R
Ultra Librarian 3D Model Ultra Librarian MPIA4040R4-3R3-R CAD Model

Description

The 885795-MPIA4040R4-3R3-R is a fixed inductor in the category of Inductors, Coils, Chokes. It is part of the MPIA4040 series and is manufactured by Eaton Bussmann.

  • Series: MPIA4040
  • Design: Molded and shielded
  • Size and Dimension: 0.175" L x 0.160" W (4.45mm x 4.06mm)
  • Seated Height: 0.079" (2.00mm)
  • Package: Tape and reel
  • Standard Package Quantity: 3,000 pieces
  • Inductance Value: 3.3 μH
  • Tolerance: ±20%
  • Core Material: Metal composite
  • Rating: AEC-Q200
  • Temperature Range: -55°C to 125°C
