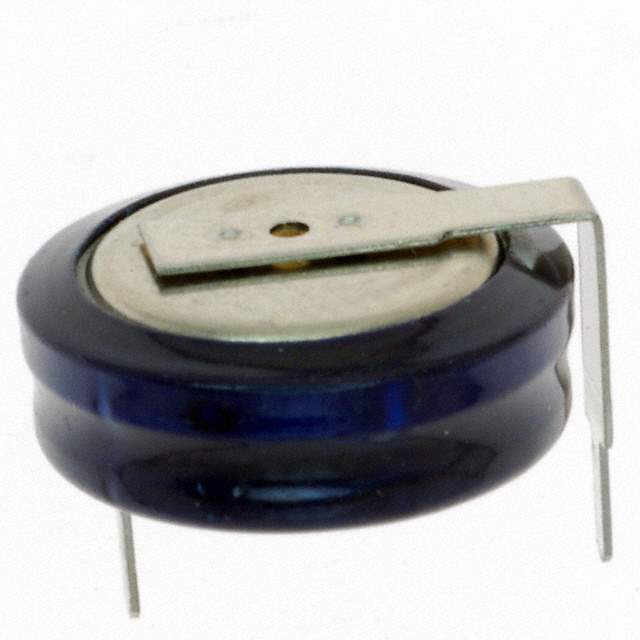

KR-5R5H155-R Real Image
Same model may have multiple batches, images only for reference.

KR-5R5H155-R

Part No KR-5R5H155-R
Manufacturer Eaton Bussmann
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 1.5F -20% +80% 5.5V T/H / 1.5 F (EDLC) Supercapacitor 5.5 V Axial, Can - Horizontal 30Ohm @ 1kHz 1000 Hrs @ 70°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Eaton - Electronics Division
Series KR
Package Bulk
Capacitance 1.5 F
Tolerance -20%, +80%
Voltage - Rated 5.5 V
ESR (Equivalent Series Resistance) 30Ohm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 70°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Axial, Can - Horizontal
Lead Spacing 0.787" (20.00mm)
Size / Dimension 0.748" Dia (19.00mm)
Height - Seated (Max) 0.256" (6.50mm)
Temperature Range - Operating -25°C ~ 70°C
Standard Package 600
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1345685-KR-5R5H155-R
Ultra Librarian 3D Model Ultra Librarian KR-5R5H155-R CAD Model

Description

The 1345685-KR-5R5H155-R is an electric double layer capacitor (EDLC) or supercapacitor from Eaton - Electronics Division.

  • Capacitance: 1.5 F
  • Voltage Rating: 5.5 V
  • ESR: 30Ohm @ 1kHz
  • Lifetime: 1000 Hrs @ 70°C
  • Packaging: Bulk
  • Mounting Type: Through-hole
  • Package/Case: Axial, can - horizontal
  • Dimension: 0.748" Dia (19.00mm)
  • Height: 0.256" (6.50mm)
  • Tolerance: -20%, +80%
  • HTSUS Code: 8532.29.0040
