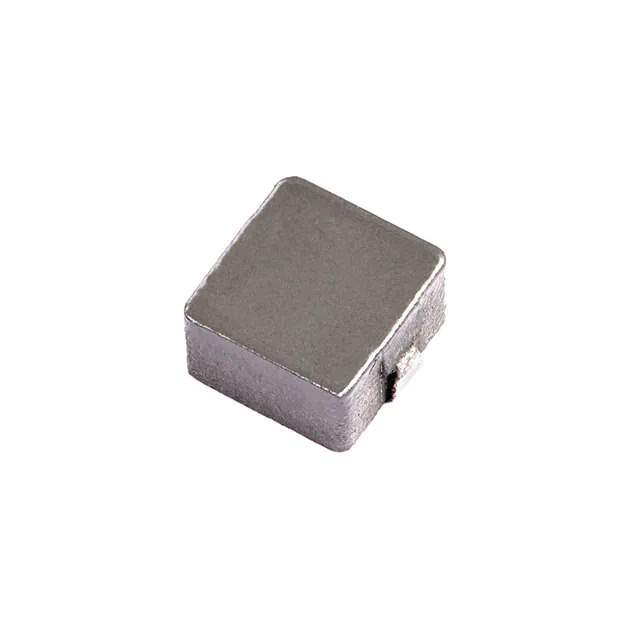

HCMA0503-100-R Real Image
Same model may have multiple batches, images only for reference.

HCMA0503-100-R

Part No HCMA0503-100-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 10UH 2.8A 132 MOHM SMD / 10 μH Shielded Drum Core, Wirewound Inductor 2.8 A 132mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Eaton Bussmann
Series HCMA0503
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 2.8 A
Current - Saturation (Isat) 2.3A
Shielding Shielded
DC Resistance (DCR) 132mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.203" L x 0.201" W (5.15mm x 5.10mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 873291-HCMA0503-100-R
Ultra Librarian 3D Model Ultra Librarian HCMA0503-100-R CAD Model

Description

The 873291-HCMA0503-100-R is a shielded fixed inductor from the HCMA0503 series by Eaton Bussmann.

  • Series: HCMA0503
  • Type: Drum core, wirewound
  • Mounting Type: Surface Mountable
  • Package/Case: Nonstandard
  • Size: 0.203" L x 0.201" W (5.15mm x 5.10mm)
  • Inductance: 10 μH
  • Maximum Seated Height: 0.118" (3.00mm)
  • DC Resistance (DCR): 132mOhm
  • Current Rating: 2.8 A
  • Operating Temperature: -55°C to 125°C
  • Packaging: Tape & reel
  • Standard Package: 2,000 pcs
  • ECCN: EAR99
