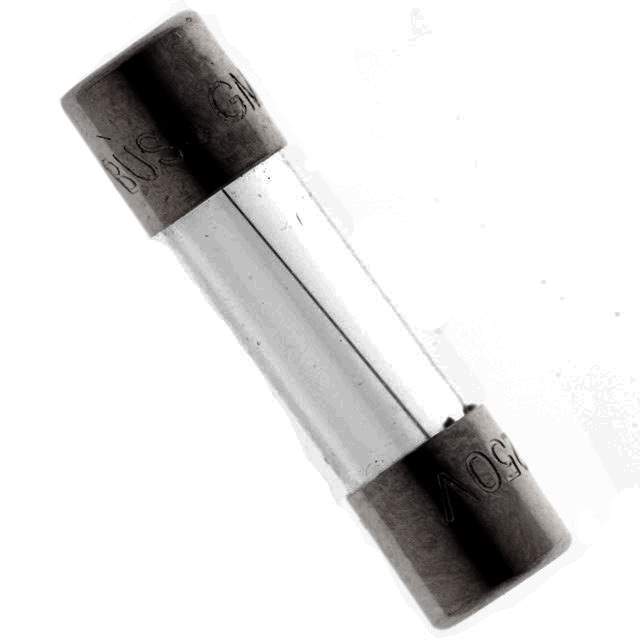

GMA-100-R Real Image
Same model may have multiple batches, images only for reference.

GMA-100-R

Part No GMA-100-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE GLASS 100MA 250VAC 5X20MM / 100 mA 250 V AC DC Fuse Cartridge, Glass Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Eaton - Electronics Division
Series GMA
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 100 mA
Voltage Rating - AC 250 V
Response Time Fast Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.0001
Approval Agency CSA, PSE, UL
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 7.84 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0020
Standard Package 5
Win Source Part Number 1060893-GMA-100-R
Ultra Librarian 3D Model Ultra Librarian GMA-100-R CAD Model

Description

The GMA series cartridge glass fuse with Win Source Part Number 1060893-GMA-100-R is a reliable electronic component for circuit protection.

  • Voltage Rating: 250 V
  • Response Time: Fast Blow
  • Breaking Capacity: 35A @ Rated Voltage
  • Melting I2t: 0.0001
  • DC Cold Resistance: 7.84 Ohms
  • Standard Package: 5
  • Mounting: Holder
  • Package/Case: 5mm x 20mm
  • Current Rating (Amps): 100 mA
  • Manufacturer: Eaton - Electronics Division
  • Approvals: CSA, PSE, and UL
  • Alternative Parts: 5MF 100-R, 3403.0157, 0034.3108, 0034.1507, BK/MDL-1/8-R, BK/AGC-1/8-R, and BK/C520-125-RGMA100R
