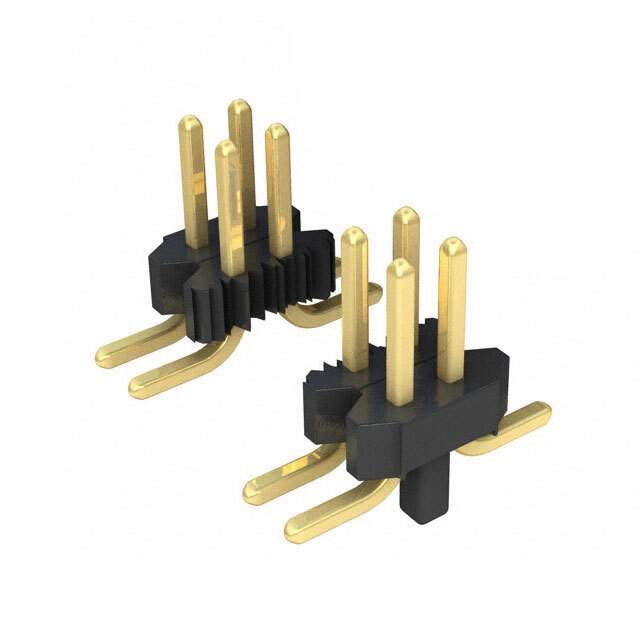

Same model may have multiple batches, images only for reference.

20021121-00020C4LF

Name: 20021121-00020C4LF
Brand: Amphenol
SKU: 1010302
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	20021121-00020C4LF
Manufacturer	Amphenol
Catalog	Circular Connectors - Housings
Description	CONN HEADER SMD 20POS 1.27MM / Connector Header Surface Mount 20 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	Minitek127® 1.27mm
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Voltage Rating	125VAC
Contact Finish Thickness - Post	50.0µin (1.27µm)
Base Product Number	20021121
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	609-3698-6,10122279-320000RLF,2002112100020C4LF,609-3698-1,609-3698-2
Standard Package	600
Win Source Part Number	1010302-20021121-00020C4LF
Ultra Librarian 3D Model	Ultra Librarian 20021121-00020C4LF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) Minitek127® 1.27mm series male pin header connector is an ideal choice for rectangular connectors - headers, male pins.

Positions: 20
Number of Rows: 2
Positions Loaded: All
Termination: Solder
Fastening Type: Push-Pull
Insulation Material: Thermoplastic
Contact Material: Copper Alloy
Material Flammability Rating: UL94 V-0
Voltage Rating: 125VAC
Temperature Range: -55°C to 125°C
Shrouded: Unshrouded
Pitch-Mating: 0.050" (1.27mm)
Contact Shape: Square
Contact Length: 0.120" (3.05mm)
Connection Style: Board to Board
Package: Tape & Reel
Standard Package: 600
Feature: Pick and Place
