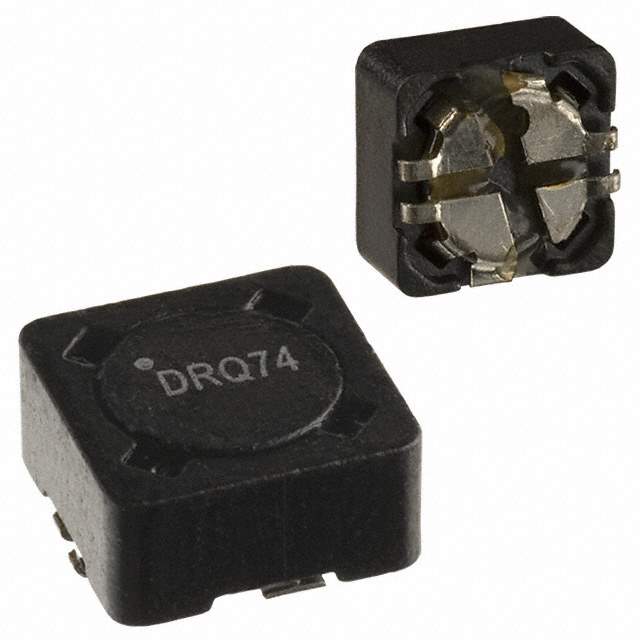

DRQ74-221-R Real Image
Same model may have multiple batches, images only for reference.

DRQ74-221-R

Part No DRQ74-221-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 227UH SMD / Shielded 2 Coil Inductor Array 908 µH Inductance - Connected in Series 227 µH Inductance - Connected in Parallel 907mOhm DC Resistance (DCR) - Parallel 560 mA Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series DRQ
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 227 µH
Inductance - Connected In Series 908 µH
Tolerance ±20%
Current Rating - Parallel 560 mA
Current Rating - Series 279 mA
Current Saturation - Parallel 660 mA
Current Saturation - Series 330 mA
DC Resistance (DCR) - Parallel 907mOhm
DC Resistance (DCR) - Series 3.63Ohm
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.299" L x 0.299" W (7.60mm x 7.60mm)
Height 0.175" (4.45mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 513-1275-1,DRQ74-221-R-ND,283-DRQ74-221-RDKR,513-1275-2,513-1275-6,283-DRQ74-221-RTR,513-1275-1-ND,513-1275-6-ND,513-1275-2-ND,DRQ74221R,283-DRQ74-221-RCT,DRQ74-221,DRQ74-221-ND,DRQ74-221R
Standard Package 1,100
Win Source Part Number 1025918-DRQ74-221-R
Ultra Librarian 3D Model Ultra Librarian DRQ74-221-R CAD Model

Description

The DRQ series of arrays, signal transformers from Eaton - Electronics Division is a reliable solution for your inductor needs.

  • Model: DRQ74-221-R
  • Shielding: Yes
  • Number of Coils: 2
  • Inductance (Series): 908 µH
  • Inductance (Parallel): 227 µH
  • Current Rating (Amps) (Series): 279 mA
  • Current Rating (Amps) (Parallel): 560 mA
  • Current Saturation (Series): 330 mA
  • Current Saturation (Parallel): 660 mA
  • DC Resistance (DCR) (Series): 3.63Ohm
  • DC Resistance (DCR) (Parallel): 907mOhm
  • Height: 0.175" (4.45mm)
  • Dimension: 0.299" L x 0.299" W (7.60mm x 7.60mm)
  • Packaging: Tape and reel
  • Standard Package: 1,100 units
  • Operating Temperature Range: -40°C ~ 125°C
  • Rating: AEC-Q200
