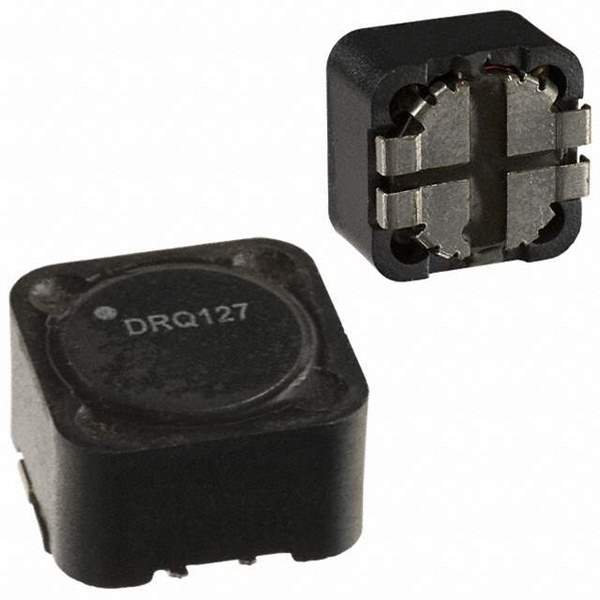

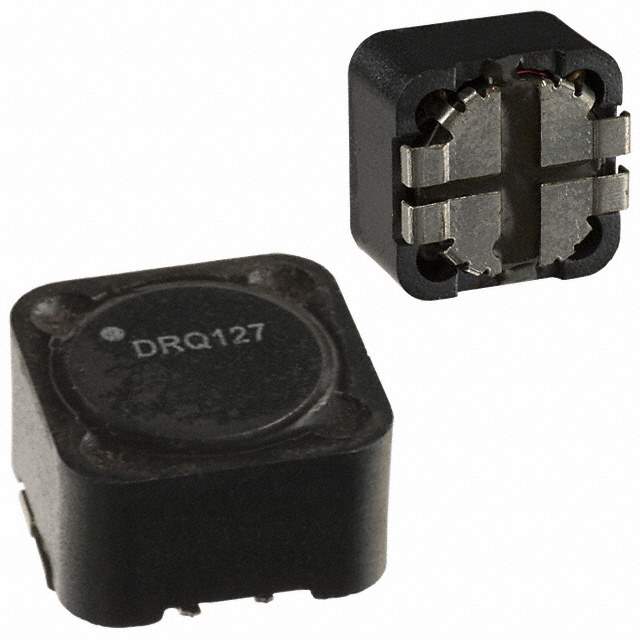

DRQ127-101-R Real Image
Same model may have multiple batches, images only for reference.

DRQ127-101-R

Part No DRQ127-101-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 99.31UH SMD / Shielded 2 Coil Inductor Array 397.2 µH Inductance - Connected in Series 99.31 µH Inductance - Connected in Parallel 163mOhm DC Resistance (DCR) - Parallel 1.96 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series DRQ
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 99.31 µH
Inductance - Connected In Series 397.2 µH
Tolerance ±20%
Current Rating - Parallel 1.96 A
Current Rating - Series 980 mA
Current Saturation - Parallel 3.64 A
Current Saturation - Series 1.82 A
DC Resistance (DCR) - Parallel 163mOhm
DC Resistance (DCR) - Series 653mOhm
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.315" (8.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 513-1314-6,DRQ127-101-R-ND,DRQ127-101R,DRQ127-101,DRQ127-101-ND,513-1314-2,513-1314-1,DRQ127101R
Standard Package 350
Win Source Part Number 1002780-DRQ127-101-R
Ultra Librarian 3D Model Ultra Librarian DRQ127-101-R CAD Model

Description

The Eaton - Electronics Division 1002780-DRQ127-101-R is a shielded wirewound inductor that is perfect for use in arrays and signal transformers. The manufacturer is Eaton - Electronics Division.

  • Shielding: Shielded
  • Type: Array, Signal Transformer
  • Packaging: Tape & Reel
  • Package: Nonstandard
  • Inductance (Series): 397.2 µH
  • Inductance (Parallel): 99.31 µH
  • Current Rating (Series): 980 mA
  • Current Rating (Parallel): 1.96 A
  • DC Resistance (DCR) Series: 653mOhm
  • DC Resistance (DCR) Parallel: 163mOhm
  • Temperature Range: -40°C ~ 125°C
  • Mounting: Surface Mount
