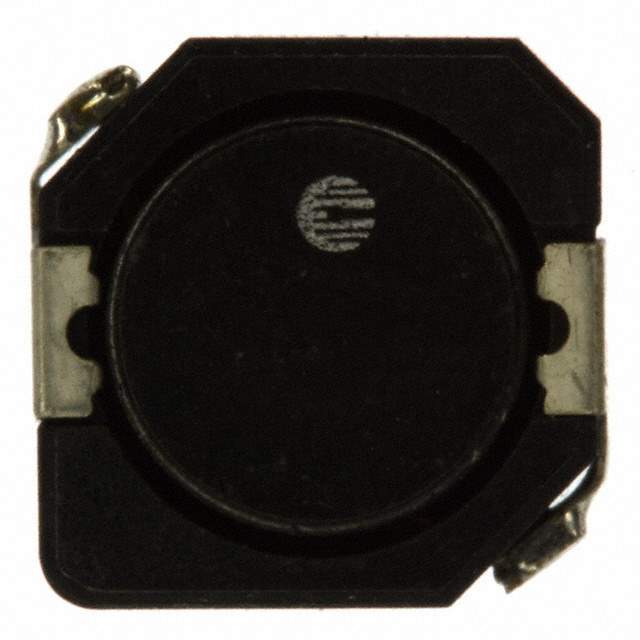

DR1040-820-R Real Image
Same model may have multiple batches, images only for reference.

DR1040-820-R

Part No DR1040-820-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 82UH 1.29A 260 MOHM
Datasheet
DR1040-820-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 82μH
Tolerance ±30%
Current Rating 1.29A
Current - Saturation 1.47A
DC Resistance (DCR) 260 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 1034004-DR1040-820-R
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Consumer Electronics, Power Management, Industrial
Ultra Librarian 3D Model Ultra Librarian DR1040-820-R CAD Model

Description

The Eaton DR1040-820-R is a wirewound inductor with an inductance of 82μH and a current rating of 1.29A.

  • Material: Ferrite
  • Temperature Range: -40°C to 125°C
  • Mounting Type: SMD
  • Tolerance: ±30%
  • DC Resistance (DCR): 260 mOhm Max
  • Current Saturation: 1.47A
  • Height Seated (Maximum): 0.157" (4.00mm)
  • Status: Active
  • Popularity: Medium
  • Application Field: Consumer electronics, power management, and industrial
