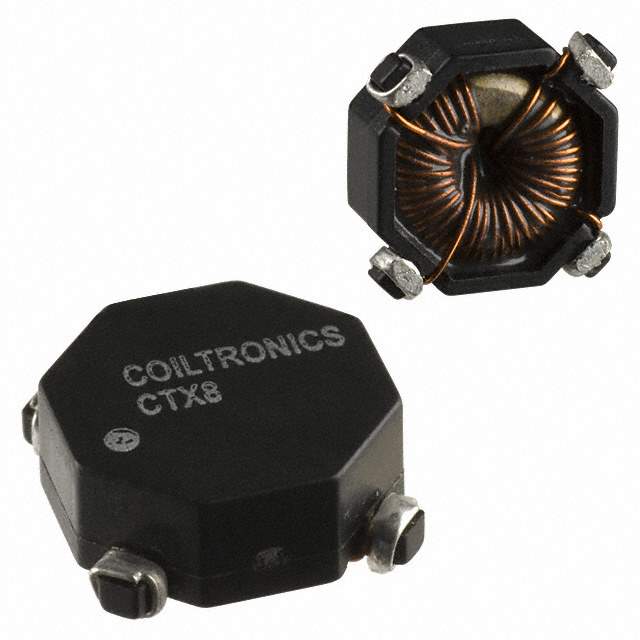

CTX8-4A-R Real Image
Same model may have multiple batches, images only for reference.

CTX8-4A-R

Part No CTX8-4A-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 8.7UH SMD
Datasheet
CTX8-4A-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 34.8μH
Inductance - Connected In Parallel 8.7μH
Tolerance ±25%
Current Rating - Parallel 5.49A
Current Rating - Series 2.74A
Current Saturation - Parallel 4.5A
Current Saturation - Series 2.25A
DC Resistance (DCR) - Parallel 15 mOhm Max
DC Resistance (DCR) - Series 59 mOhm Max
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height 0.250" (6.35mm)
Win Source Part Number 1030812-CTX8-4A-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CTX8-4A-R CAD Model

Description

The CTX8-4A-R is an inductor, coil, or choke designed for use in various electronic applications.

  • Tolerance: ±25%
  • Height: 0.250” (6.35mm)
  • Number of Coils: 2
  • Inductance (Parallel): 8.7μH
  • Current Rating (Parallel): 5.49A
  • Current Rating (Series): 2.74A
  • Current Saturation (Parallel): 4.5A
  • Current Saturation (Series): 2.25A
  • DC Resistance (Parallel): 15 mOhm Max
  • DC Resistance (Series): 59 mOhm Max
  • Packaging: Reel
  • Mounting Type: SMD (SMT)
  • Temperature Range: -40°C to 85°C
  • Manufacturer: Eaton
