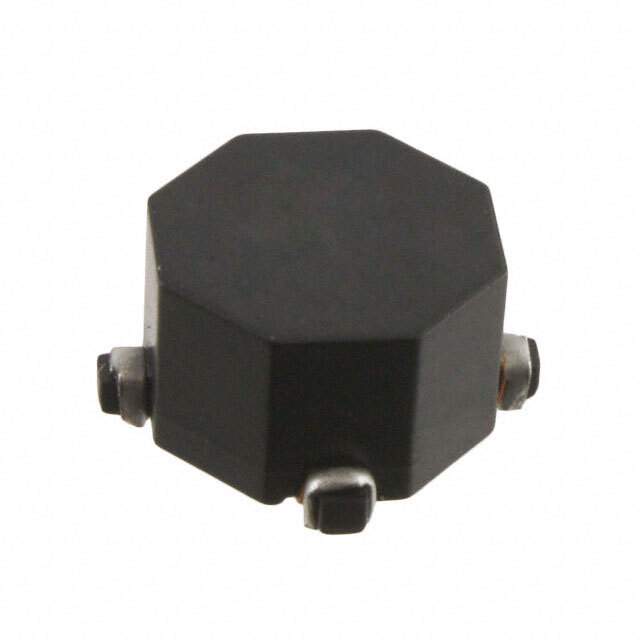

CTX20-2P-R Real Image
Same model may have multiple batches, images only for reference.

CTX20-2P-R

Part No CTX20-2P-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 19.58UH SMD / Unshielded 2 Coil Inductor Array 78.34 µH Inductance - Connected in Series 19.58 µH Inductance - Connected in Parallel 97mOhm Max DC Resistance (DCR) - Parallel 1.5 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series Econo-Pac™
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 19.58 µH
Inductance - Connected In Series 78.34 µH
Tolerance ±20%
Current Rating - Parallel 1.5 A
Current Rating - Series 750 mA
DC Resistance (DCR) - Parallel 97mOhm Max
DC Resistance (DCR) - Series 387mOhm Max
Shielding Unshielded
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height 0.235" (5.97mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names CTX202PR,513-1029-2,513-1029-1,Q3103727,CTX20-2P,513-1029-6
Standard Package 800
Win Source Part Number 996611-CTX20-2P-R
Ultra Librarian 3D Model Ultra Librarian CTX20-2P-R CAD Model

Description

The Eaton Econo-Pac CTX20-2P-R is a tape and reel packaged array of signal transformers with an unshielded shielding type.

  • Height: 0.235"
  • Dimension: 0.450" L x 0.450" W
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • Series: Econo-Pac
