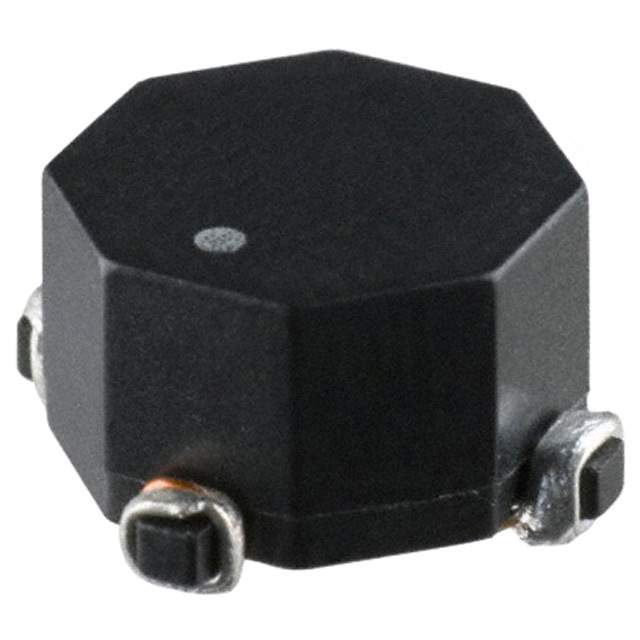

CMS2-11-R Real Image
Same model may have multiple batches, images only for reference.

CMS2-11-R

Part No CMS2-11-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 700UH 800MA 2LN SMD / 700 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 800mA DCR 230mOhm (Typ)
Datasheet
CMS2-11-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Eaton - Electronics Division
Series CMS
Package Tape & Reel
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 700 µH @ 100 kHz
Current Rating (Max) 800mA
DC Resistance (DCR) (Max) 230mOhm (Typ)
Temperature Range - Operating -40°C ~ 160°C
Mounting SMD (SMT)
Dimension 0.350" L x 0.350" W (8.90mm x 8.90mm)
Height (Max) 0.236" (6.00mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 283-4051-2,283-4051-1,CMS2-11-R-ND,CMS2-11-ND,CMS211R,CMS2-11,283-4051-6
Standard Package 800
Win Source Part Number 1171408-CMS2-11-R
Ultra Librarian 3D Model Ultra Librarian CMS2-11-R CAD Model

Description

The CMS2-11-R is a common mode choke filter designed for power line applications. It is manufactured by Eaton - Electronics Division.

  • Maximum Current Rating: 800mA
  • DC Resistance: 230mOhm
  • Filter Type: power line filter
  • Inductance: 700μH @ 100kHz
  • Package: horizontal with 4 PC pads
  • Mounting: SMD (SMT)
  • Operating Temperature Range: -40°C to 160°C
  • Dimensions: 0.350” L x 0.350” W (8.90mm x 8.90mm)
  • Series: CMS
  • Package: tape and reel
