Same model may have multiple batches, images only for reference.

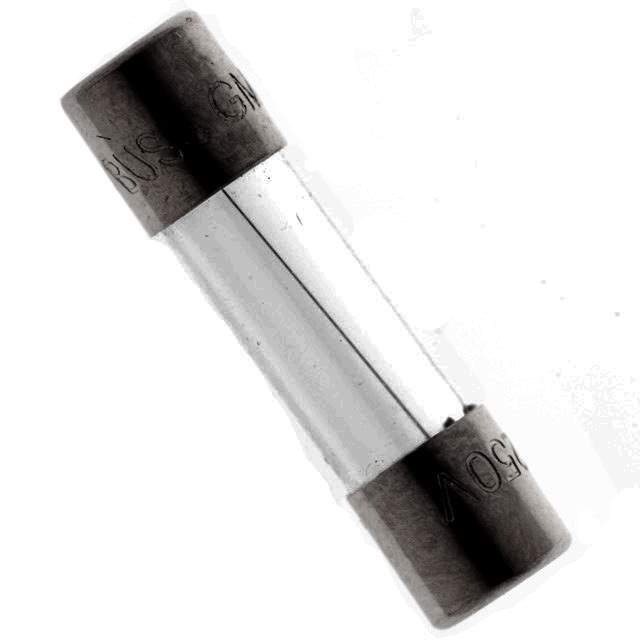

BK/GMA-3.15-R Real Image
Same model may have multiple batches, images only for reference.

BK/GMA-3.15-R

Part No BK/GMA-3.15-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE GLASS 3.15A 125VAC 5X20MM / 3.15 A 125 V AC DC Fuse Cartridge, Glass Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Eaton - Electronics Division
Series GMA
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 3.15 A
Voltage Rating - AC 125 V
Response Time Fast Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 10kA
Melting I2t 9.7
Approval Agency CSA, PSE, UL
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.036 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0020
Other Names 283-2842,BK-GMA-3-15-R,BK/GMA-3.15-R-ND
Standard Package 100
Win Source Part Number 1212762-BK/GMA-3.15-R
Ultra Librarian 3D Model Ultra Librarian BK/GMA-3.15-R CAD Model

Description

The 1212762-BK/GMA-3.15-R is a glass cartridge fuse from Eaton - Electronics Division.

  • Fuse Type: Fast Blow
  • Voltage Rating: 125 V AC
  • Current Rating: 3.15 A
  • Breaking Capacity @ Rated Voltage: 10kA
  • Melting I2t: 9.7
  • DC Cold Resistance: 0.036 Ohms
  • Packaging: Bulk
  • Mounting: Holder
  • Package/Case Size: 5mm x 20mm
  • Dimension: 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
  • Alternative Parts: BK-GMA-3-15-R, BK/GMA3.15R, BKGMA-3.15-R
  • HTSUS Code: 8536.10.0020
