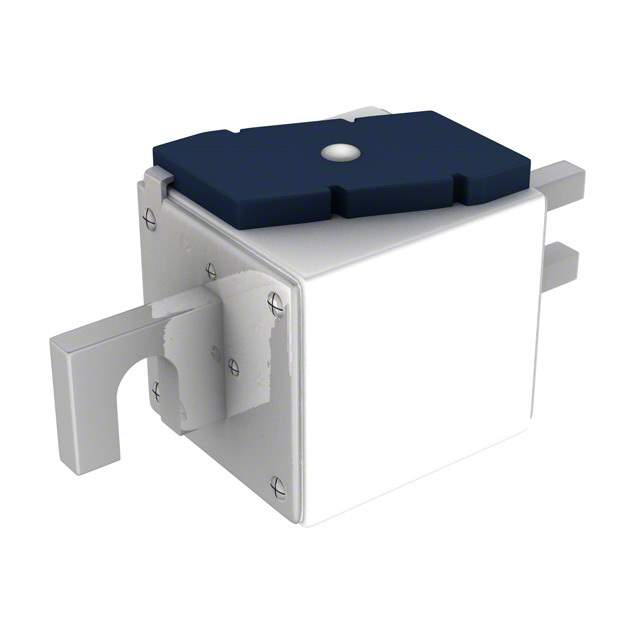

170M5259 Real Image
Same model may have multiple batches, images only for reference.

170M5259

Part No 170M5259
Manufacturer Eaton Bussmann
Catalog Electrical, Specialty Fuses
Description FUSE SQUARE 450A 700VAC RECT / 450A 700 V AC DC Fuse Square Bolt Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Eaton - Bussmann Electrical Division
Package Bulk
Mounting Type Bolt Mount
Fuse Type Square
Current Rating (Amps) 450A
Voltage Rating - AC 700 V
Applications Electrical, Industrial
Features Indicating
Approval Agency CE, CSA, UR
Breaking Capacity @ Rated Voltage 200kA
Package / Case Rectangular, Blade
Dimension 1.969" L x 2.402" W x 3.031" H (50.00mm x 61.00mm x 77.00mm)
Melting I2t 15500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Standard Package 3
Win Source Part Number 1189656-170M5259
Ultra Librarian 3D Model Ultra Librarian 170M5259 CAD Model

Description

This circuit protection electronic component with Win Source Part Number 1189656-170M5259 is manufactured by Eaton - Bussmann Electrical Division.

  • Fuse Type: Square fuse
  • Voltage Rating: 700V AC
  • Current Rating: 450A
  • Indicating: Yes
  • Breaking Capacity: 200kA @ Rated Voltage
  • Standard Package: 3
  • Mounting: Bolt Mount
  • Package/Case: Rectangular, blade-shaped, 1.969" L x 2.402" W x 3.031" H (50.00mm x 61.00mm x 77.00mm)
  • Approvals: CE, CSA, and UR
