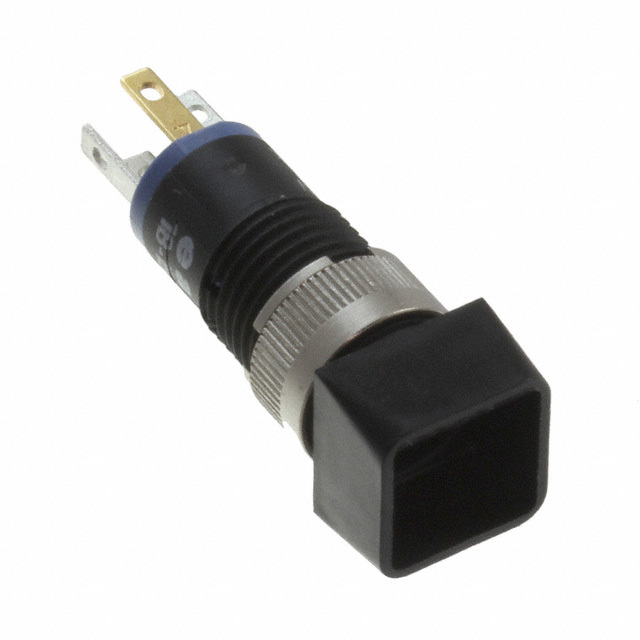

11-272.825

Part No 11-272.825
Manufacturer EAO
Catalog Pushbutton Switches
Description SWITCH PB DPDT 5A 250V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Mounting Type Panel Mount, Rear
Type Standard
Circuit DPDT (DB/DM)
Switch Function On-On
Current Rating (Amps) 5A (AC), 2A (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 24 V
Actuator Type Round, Button (Not Included)
Actuator Marking No Marking
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 16.00mm Dia
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1553269-11-272.825
Ultra Librarian 3D Model Ultra Librarian 11-272.825 CAD Model
