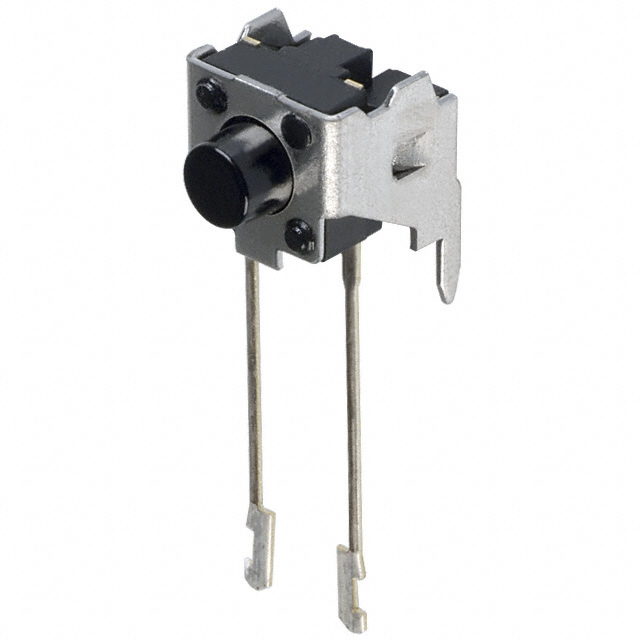

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Circuit SPST x 2
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Dual
Mounting Type Through Hole, Right Angle
Actuator Length, Right Angle 7.35mm
Actuator Orientation Side Actuated
Termination Style PC Pin
Outline 8.40mm x 10.50mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -20°C ~ 70°C
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1563666-TL53EF160Q
Ultra Librarian 3D Model Ultra Librarian TL53EF160Q CAD Model
