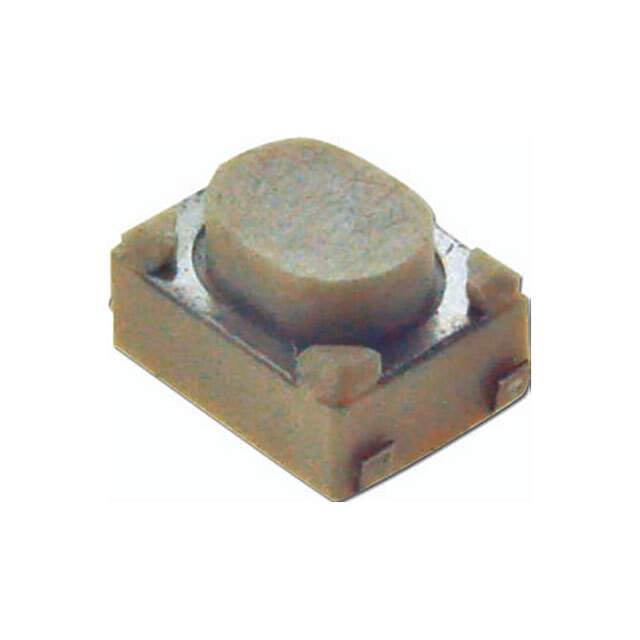

TL3365AF180QG Real Image
Same model may have multiple batches, images only for reference.

TL3365AF180QG

Part No TL3365AF180QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V  /  Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
TL3365AF180QG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr E-Switch
Series TL3365
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Oval Button
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 2.50mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 4.20mm x 3.20mm
Illumination Non-Illuminated
Operating Force 180gf
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.20mm
Mechanical Life 100,000 Cycles
Base Product Number TL3365
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names EG5384CT,EG5384DKR,EG5384TR
Standard Package 3,000
Win Source Part Number 997075-TL3365AF180QG
Ultra Librarian 3D Model Ultra Librarian TL3365AF180QG CAD Model

Description

The TL3365AF180QG is a tactile switch manufactured by E-Switch.

  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Oval Button
  • Switch Travel: 0.20mm
  • Contact Rating: 0.05A @ 12VDC
  • Mechanical Life: 100,000 cycles
  • Outline: 4.20mm x 3.20mm
  • Actuator Height off PCB: 2.50mm
