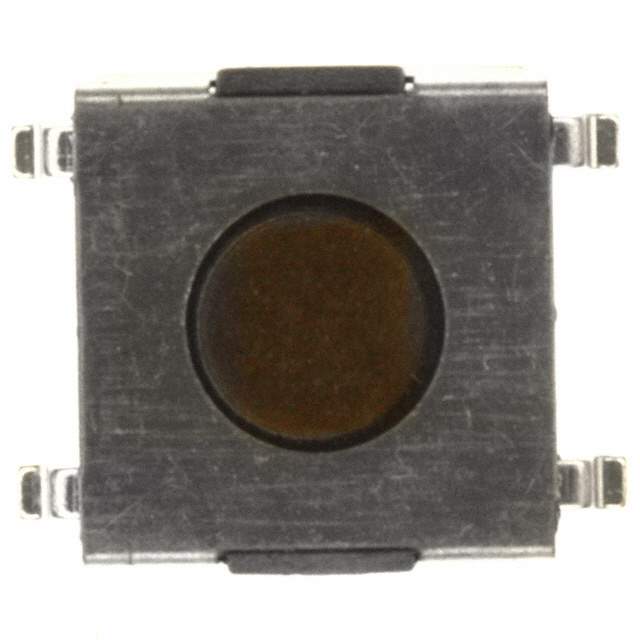

TL3303F100QG Real Image
Same model may have multiple batches, images only for reference.

TL3303F100QG

Part No TL3303F100QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 50VDC 0.98N SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer E-Switch
Series TL3303
Packaging Reel package
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting SMD
Actuator Height off PCB, Vertical 3.10mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.20mm x 6.00mm
Illumination Non-Illuminated
Operating Force 100gf
Actuator Material Polyphenylene Sulfide (PPS)
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Operating Temperature Range -20°C ~ 70°C
Win Source Part Number 796874-TL3303F100QG
Popularity Medium
Supply and Demand Status Limited
Family Name TL3303
Introduction Date February 18, 2008
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian TL3303F100QG CAD Model

Description

The TL3303 tactile switch from E-Switch is a SPST-NO switch with a standard actuator.

  • Circuit: SPST-NO
  • Actuator Type: Standard
  • Switch Travel: 0.25mm
  • Operating Force: 100gf
  • Actuation: Top
  • Outline: 6.20mm x 6.00mm
  • Illumination: Non-Illuminated
  • Mechanical Life: 100,000 cycles
  • Operating Temperature Range: -20°C ~ 70°C
  • Mounting: Reel
  • Termination: Gull Wing
  • Contact Rating: 0.05A @ 12VDC
