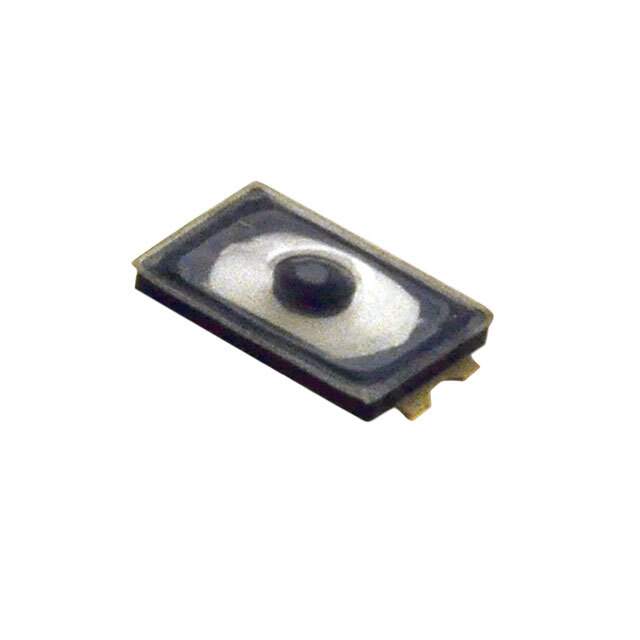

TL3780AF330QG Real Image
Same model may have multiple batches, images only for reference.

TL3780AF330QG

Part No TL3780AF330QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
TL3780AF330QG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Manufacturer E-Switch
Packaging Reel - TR
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting Surface Mount
Actuator Height off PCB, Vertical 0.60mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 3.00mm x 2.00mm
Illumination Non-Illuminated
Operating Force 330gf
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.13mm
Mechanical Life 300,000 Cycles
Base Product Number TL3780
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Part Number EG5394DKR,EG5394CT,EG5394TR
Standard Package 8,500
Win Source Part Number 1323860-TL3780AF330QG
Ultra Librarian 3D Model Ultra Librarian TL3780AF330QG CAD Model

Description

The TL3780AF330QG from E-Switch is a tactile switch that is SPST-NO and off-mom.

  • Switch Function: off-mom
  • Illuminated: non-illuminated
  • Temperature Range: -40°C to 85°C
  • Mechanical Life: 300,000 cycles
  • Actuator: top actuated
  • Actuator Orientation: top actuated
  • Packaging: reel - TR
  • Standard Package: 8,500
  • MSL Level: 1 (Unlimited)
  • REACH: unaffected
  • ECCN: EAR99
  • HTSUS code: 8536.50.9031
  • Other part numbers: EG5394DKR, EG5394CT, EG5394TR
