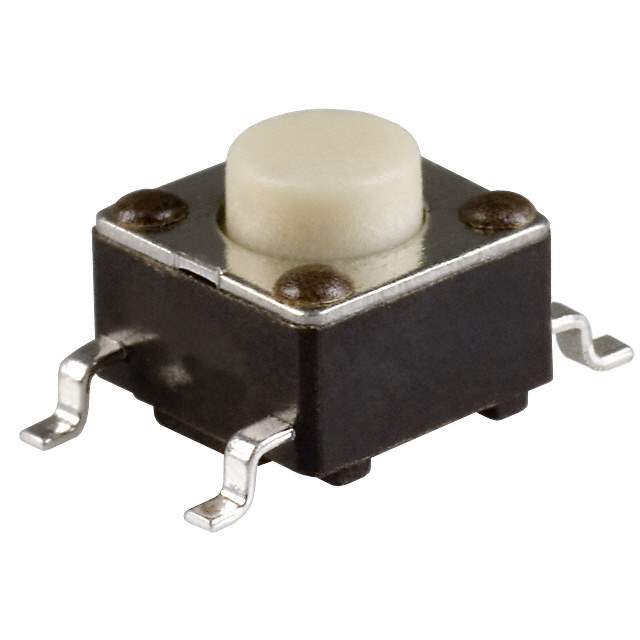

TL3301AF260QG

Name: TL3301AF260QG
Brand: E-Switch
SKU: 796872
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TL3301AF260QG
Manufacturer	E-Switch
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 12VDC 100000Cycles 2.55N SMD T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Switches
Manufacturer	E-Switch
Series	TL3301
Packaging	Reel package
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Standard
Mounting	SMD
Actuator Height off PCB, Vertical	5.00mm
Actuator Orientation	Top Actuated
Termination Style	Gull Wing
Outline	6.00mm x 6.00mm
Illumination	Non-Illuminated
Operating Force	260gf
Actuator Material	Polyamide (PA), Nylon
Switch Travel	0.25mm
Mechanical Life	100,000 Cycles
Operating Temperature Range	-20°C ~ 70°C
Win Source Part Number	796872-TL3301AF260QG
Popularity	Medium
Supply and Demand Status	Limited
Family Name	TL3301
Introduction Date	February 18, 2008
ECCN	EAR99
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian TL3301AF260QG CAD Model

Description

The TL3301AF260QG switch from E-Switch is a surface mount switch with SPST-NO circuit and Off-Mom switch function.

Circuit: SPST-NO
Switch Function: Off-Mom
Actuator Material: Polyamide (PA), Nylon
Actuator Type: Standard
Switch Travel: 0.25mm
Operating Force: 260gf
Outline: 6.00mm x 6.00mm
Actuation: Top
Contact Rating: 0.05A @ 12VDC
Mechanical Life: 100,000 cycles
Illumination: Non-Illuminated
Operating Temperature Range: -20°C to 70°C
Packaging: Reel
Estimated EOL Date: 2027
