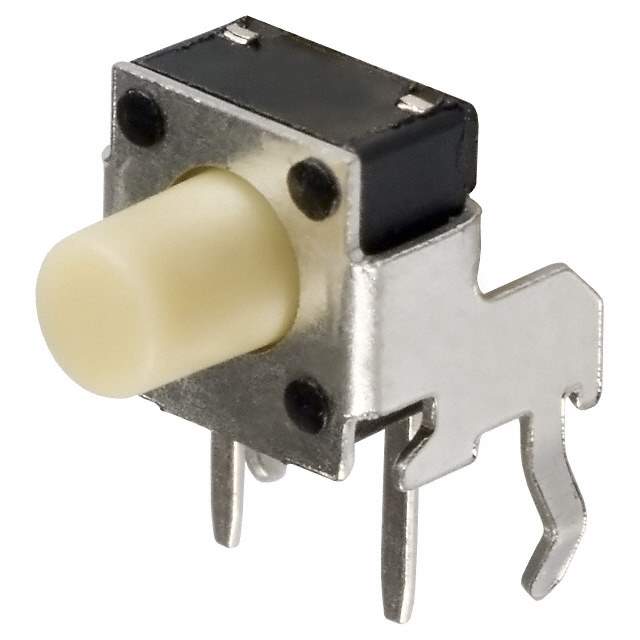

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer E-Switch
Packaging Bulk
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating at Voltage 0.05A at 12VDC
Actuator Type Standard
Mounting Style Through Hole, Right Angle
Actuator Length, Right Angle 6.15mm
Actuator Orientation Side Actuated
Termination Style PC Pin
Outline 7.10mm x 6.55mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809577-TL1105RF160Q
Ultra Librarian 3D Model Ultra Librarian TL1105RF160Q CAD Model

Description

E-Switch is the manufacturer of this electronic component. The Win Source Part Number for this product is 809577-TL1105RF160Q. The manufacturer is E-Switch

  • Packaging: Bulk
  • Termination Style: PC Pin
  • Mounting Style: Through-Hole, Right Angle
  • Actuator Material: Polyamide (PA), Nylon
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Standard
  • Switch Travel: 0.25mm
  • Actuator Orientation: Side Actuated
  • Outline: 7.10mm x 6.55mm
  • Illumination: Non-illuminated
  • Operating Force: 160gf
  • Mechanical Life: 100,000 cycles
  • Temperature Range: -20°C to 70°C
  • Category: Switches
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1,000
