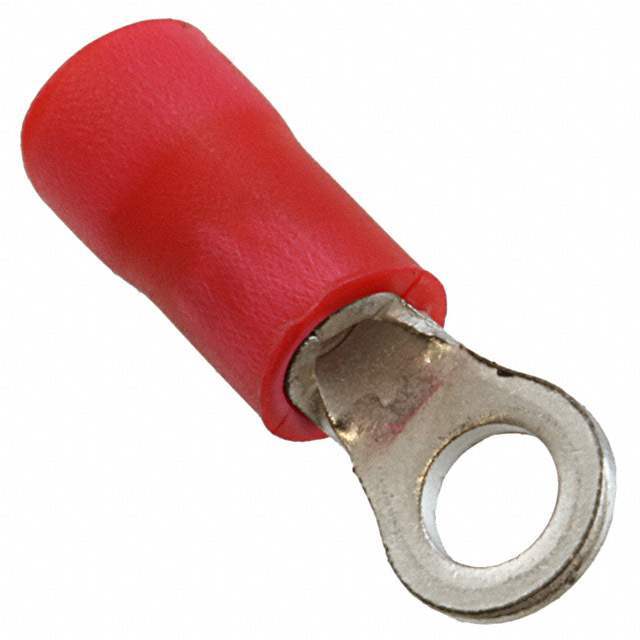

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1207546-170780-1
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects- Terminals- Ring Connectors
Series Plasti-Grip
Package Bulk
Product Status Active
Terminal Type Circular
Stud/Tab Size 5 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.217" (5.50mm)
Mounting Type Free Hanging (In-Line)
Ultra Librarian 3D Model Ultra Librarian 170780-1 CAD Model

Description

Ring Terminal Connector 5 Stud Circular 18-22 AWG Crimp
