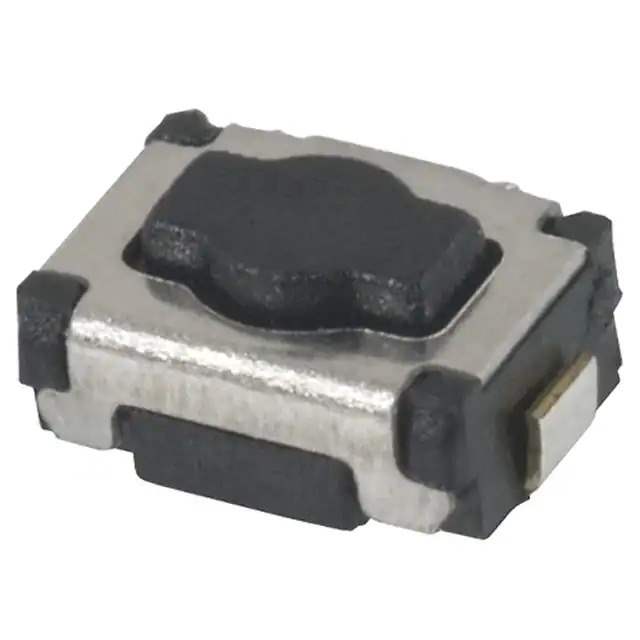

TL1015BF160QG Real Image
Same model may have multiple batches, images only for reference.

TL1015BF160QG

Part No TL1015BF160QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
TL1015BF160QG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr E-Switch
Series TL1015
Package Tape & Reel
Product Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 2.00mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 3.90mm x 2.90mm
Illumination Non-Illuminated
Operating Force 160gf
Features Board Guide
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyamide (PA46), Nylon 4/6
Switch Travel 0.20mm
Mechanical Life 200,000 Cycles
Base Product Number TL1015
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 936598-TL1015BF160QG
Ultra Librarian 3D Model Ultra Librarian TL1015BF160QG CAD Model

Description

The TL1015 Tactile Switch is a high-quality switch designed for various electronic applications.

  • Termination Style: Gull Wing
  • Actuator Type: Standard
  • Switch Function: Off-Mom
  • Circuit Configuration: SPST-NO
  • Switch Travel: 0.20mm
  • Operating Force: 160gf
  • Mounting: Surface Mountable
  • Outline: 3.90mm x 2.90mm
  • Contact Rating: 0.05A @ 12VDC
