Same model may have multiple batches, images only for reference.

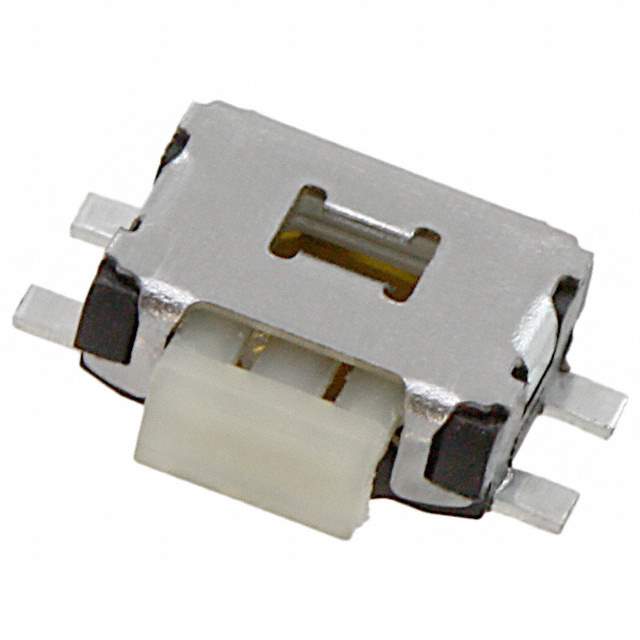

TL1014BF160QG Real Image
Same model may have multiple batches, images only for reference.

TL1014BF160QG

Part No TL1014BF160QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Switch Tactile N.O. SPST Rectangular Button Gull Wing 0.05A 12VDC 1.57N SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer E-Switch
Series TL1014
Packaging Reel package
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Rectangular Button
Mounting Surface Mount, Right Angle
Actuator Orientation Side Actuated
Termination Style Gull Wing
Outline 4.70mm x 3.50mm
Illumination Non-Illuminated
Operating Force 160gf
Features Board Guide
Actuator Material Polyamide (PA46), Nylon 4/6
Switch Travel 0.30mm
Mechanical Life 100,000 Cycles
Operating Temperature Range -20°C ~ 70°C
Win Source Part Number 796860-TL1014BF160QG
Popularity Medium
Supply and Demand Status Balance
Family Name TL1014
Introduction Date February 18, 2008
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian TL1014BF160QG CAD Model

Description

The TL1014BF160QG switch from E-Switch is a board guide tactile switch that is SPST-NO.

  • Actuator Type: Rectangular Button
  • Switch Travel: 0.30mm
  • Contact Rating: 0.05A @ 12VDC
  • Operating Force: 160gf
  • Mechanical Life: 100,000 cycles
  • Operating Temperature Range: -20°C to 70°C
  • Termination: Gull Wing
  • Illumination: Non-Illuminated
  • Illumination Voltage: None
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (unlimited)
