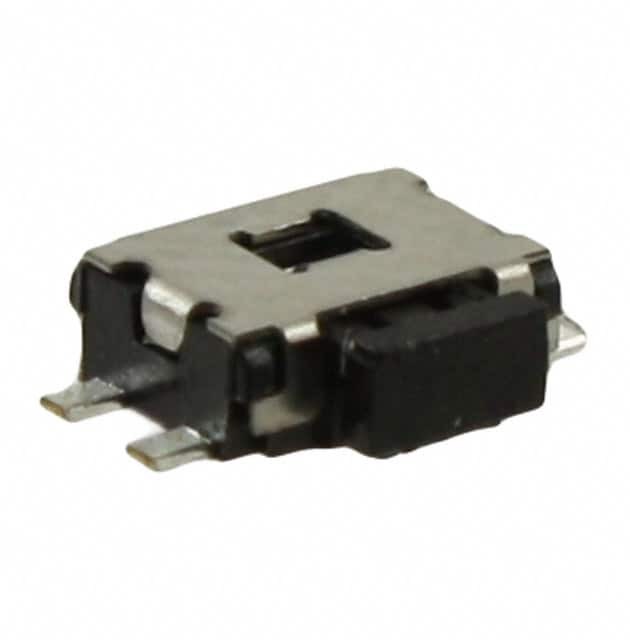

Part No TL1014AF180QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Datasheet
TL1014AF180QG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr E-Switch
Series TL1014
Package Tape & Reel
Product Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Rectangular Button
Mounting Type Surface Mount, Right Angle
Actuator Orientation Side Actuated
Termination Style Gull Wing
Outline 6.40mm x 3.50mm
Illumination Non-Illuminated
Operating Force 180gf
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyamide (PA46), Nylon 4/6
Switch Travel 0.30mm
Mechanical Life 100,000 Cycles
Base Product Number TL1014
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 936597-TL1014AF180QG
Ultra Librarian 3D Model Ultra Librarian TL1014AF180QG CAD Model

Description

The 936597-TL1014AF180QG is a rectangular button tactile switch from the TL1014 series by E-Switch.

  • Mounting: Surface Mount
  • Termination Style: Gull-Wing
  • Contact Rating: 0.05A @ 12VDC
  • Switch Travel: 0.30mm
  • Actuator Height off PCB: 7.00mm
  • Mechanical Life: 100,000 cycles
  • Operating Temperature Range: -20°C to 70°C
  • Illumination: Non-Illuminated
  • Standard Package: 3,000 pieces
  • Product Status: Obsolete
