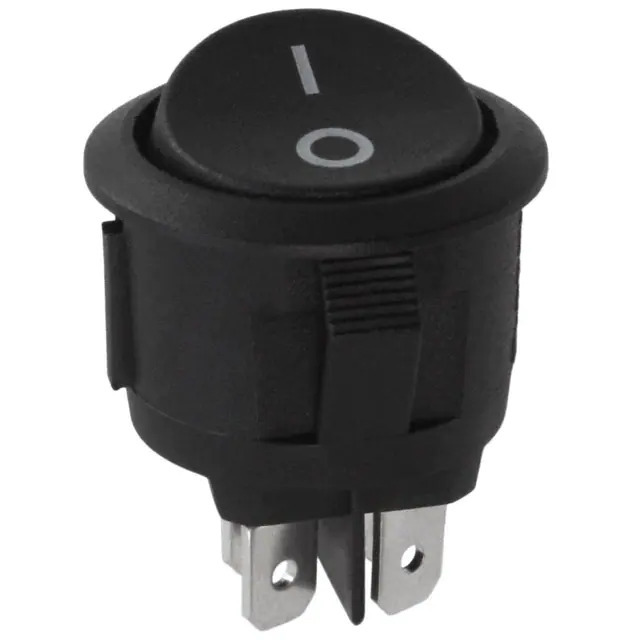

Same model may have multiple batches, images only for reference.
RRA12C1121 E-Switch
Same model may have multiple batches, images only for reference.

RRA12C1121

Part No RRA12C1121
Manufacturer E-Switch
Catalog Rocker Switches
Description SWITCH ROCKER DPST 15A 125V / Rocker Switch DPST 15A (AC) 125 V Panel Mount, Snap-In
Datasheet
RRA12C1121 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Rocker Switches
Mfr E-Switch
Series RRA, LAMB
Package Bulk
Product Status Active
Mounting Type Panel Mount, Snap-In
Circuit DPST
Switch Function On-Off
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Round
Color - Actuator/Cap Black
Actuator Marking O -
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Quick Connect - 0.187" (4.7mm)
Ingress Protection -
Features -
Panel Cutout Dimensions Circular - 22.00mm Dia
Temperature Range - Operating -20°C ~ 105°C
Mechanical Life -
Electrical Life 10,000 Cycles
Base Product Number RRA12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1352380-RRA12C1121
Ultra Librarian 3D Model Ultra Librarian RRA12C1121 CAD Model

Description

The E-Switch RRA12C1121 is a panel mount rocker switch.

  • Manufacturer: E-Switch
  • Product: RRA12C1121
  • Series: RRA and LAMB
  • Circuit Configuration: DPST
  • Switch Function: On-Off
  • Current Rating: 15A (AC)
  • Voltage Rating: 125V AC
  • Actuator Type: Round
  • Actuator/Cap Color: Black
  • Termination Style: Quick Connect
  • Connector Size: 0.187" (4.7mm)
  • Panel Cutout Dimensions: Circular with a diameter of 22.00mm
  • Temperature Range: -20°C to 105°C
  • Mechanical Life: 10,000 Cycles
  • Packaging: Bulk
