Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Rocker Switches
Mfr E-Switch
Series R5
Package Bulk
Product Status Active
Mounting Type Panel Mount, Snap-In
Circuit DPST
Switch Function On-Off
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking O -
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Quick Connect - 0.250" (6.3mm)
Ingress Protection -
Features -
Panel Cutout Dimensions Rectangular - 30.00mm x 22.20mm
Temperature Range - Operating -20°C ~ 55°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number R5ABLKBL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1355901-R5ABLKBLKFF0
Ultra Librarian 3D Model Ultra Librarian R5ABLKBLKFF0 CAD Model

Description

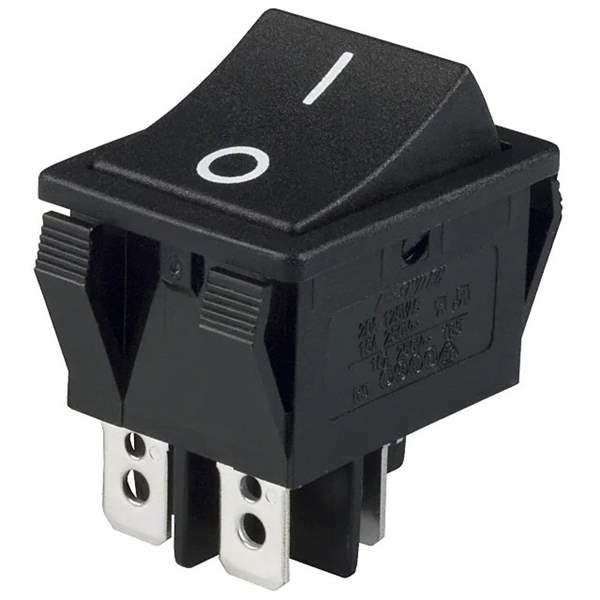

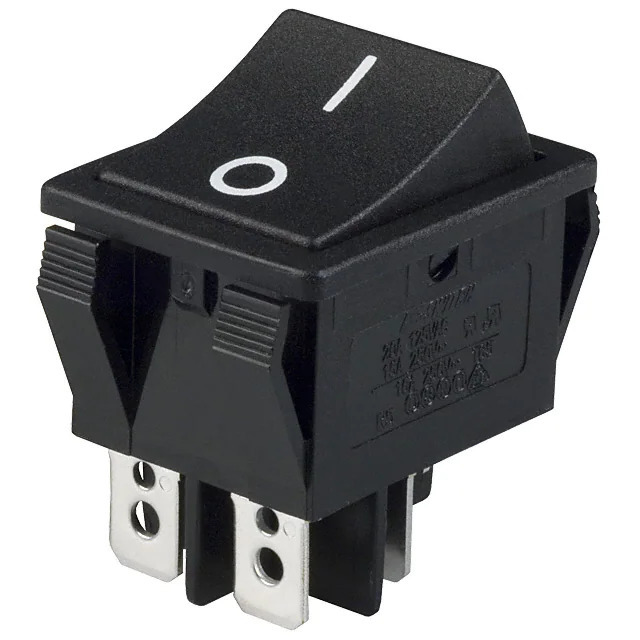

The R5ABLKBLKFF0 is a rocker switch from the R5 series manufactured by E-Switch.

  • Switch Type: DPST (Double Pole Single Throw)
  • Switch Function: On-Off
  • Actuator Type: Concave (curved)
  • Actuator/Cap Color: Black
  • Termination Style: Quick connect, 0.250" (6.3mm)
  • Panel Cutout: 30.00mm x 22.20mm
  • Mechanical Life: 30,000 cycles
  • Mounting: Panel mount snap-in
