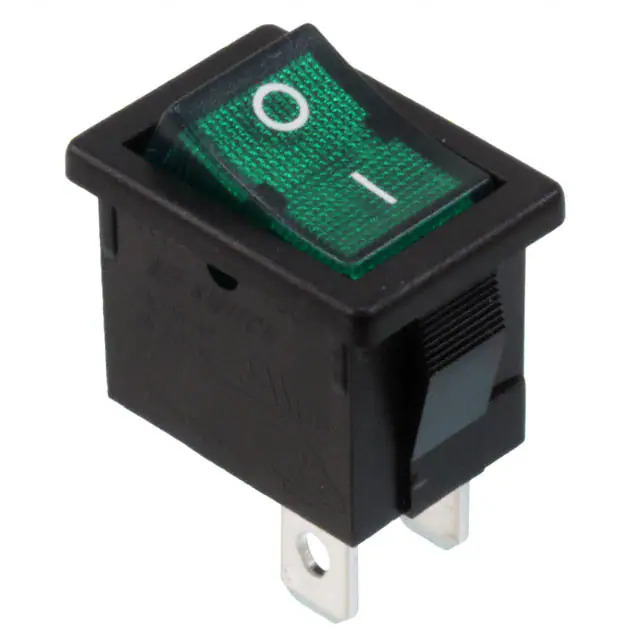

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Rocker Switches
Mfr E-Switch
Series R1973
Package Bulk
Product Status Active
Mounting Type Panel Mount, Snap-In
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 9A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved) - Illuminated
Color - Actuator/Cap Green
Actuator Marking O -
Illumination Type, Color Incandescent, Green
Illumination Voltage (Nominal) 24 VDC
Termination Style Quick Connect - 0.187" (4.7mm)
Ingress Protection -
Features -
Panel Cutout Dimensions Rectangular - 19.20mm x 12.80mm
Temperature Range - Operating -30°C ~ 65°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number R1973
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376189-R1973ABLKGILFF4
Ultra Librarian 3D Model Ultra Librarian R1973ABLKGILFF4 CAD Model

Description

The E-Switch R1973 Rocker Switch is a high-quality and versatile switch suitable for various applications by E-Switch.

  • Operating Temperature: -30°C to 65°C
  • Mounting Type: Panel mount and snap-in
  • Current Rating (AC): 9A
  • Voltage Rating (AC): 125V AC
  • Circuit: SPST
  • Switch Function: on-off
  • Actuator Type: Concave (curved) and illuminated
