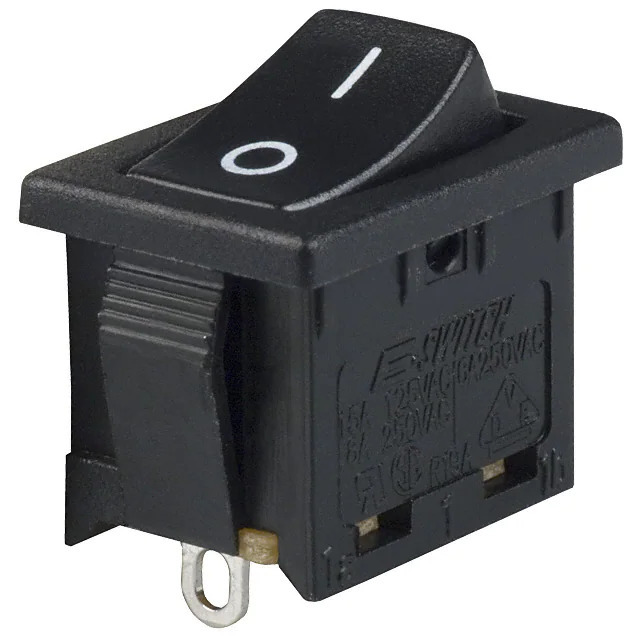

R1966ABLKBLKFS E-Switch
Same model may have multiple batches, images only for reference.

R1966ABLKBLKFS

Part No R1966ABLKBLKFS
Manufacturer E-Switch
Catalog Rocker Switches
Description SWITCH ROCKER SPST 15A 125V
Datasheet
R1966ABLKBLKFS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Rocker Switches
Mfr E-Switch
Series R1966
Package Bulk
Product Status Active
Mounting Type Panel Mount, Snap-In
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking O -
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Ingress Protection -
Features -
Panel Cutout Dimensions Rectangular - 19.40mm x 13.00mm
Temperature Range - Operating -30°C ~ 65°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number R1966
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376184-R1966ABLKBLKFS
Ultra Librarian 3D Model Ultra Librarian R1966ABLKBLKFS CAD Model

Description

The E-Switch R1966 Rocker Switch is a high-quality component designed for panel mount and snap-in mounting types by E-Switch.

  • Current Rating (AC): 15A
  • Voltage Rating (AC): 125V AC
  • Circuit: SPST
  • Switch Function: On-Off
  • Actuator Type: Concave (curved)
  • Actuator/Cap Color: Black
  • Mechanical Life: 30,000 cycles
