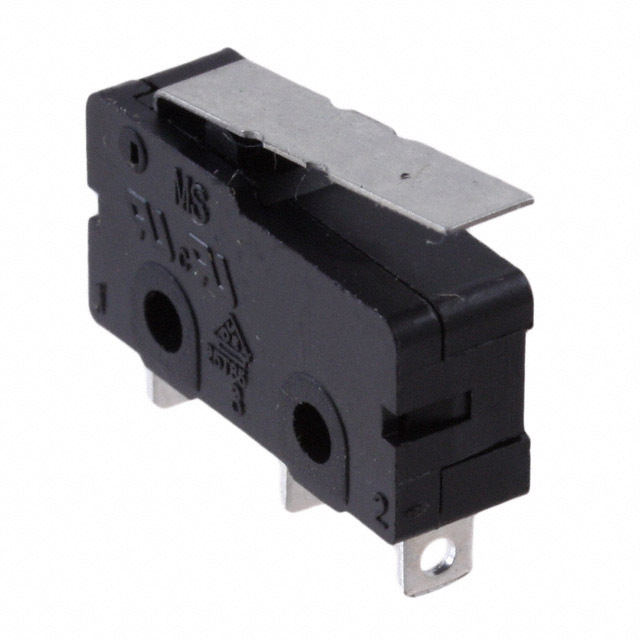

MS0850502F030P1A E-Switch – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Operating Force 30gf
Release Force 12gf
Operating Position 0.358" (9.1mm)
Pretravel 0.150" (3.8mm)
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Temperature Range - Operating -25°C ~ 85°C
Package Bulk
Supply and Demand Status Limited
Win Source Part Number 1551969-MS0850502F030P1A
Ultra Librarian 3D Model Ultra Librarian MS0850502F030P1A CAD Model
