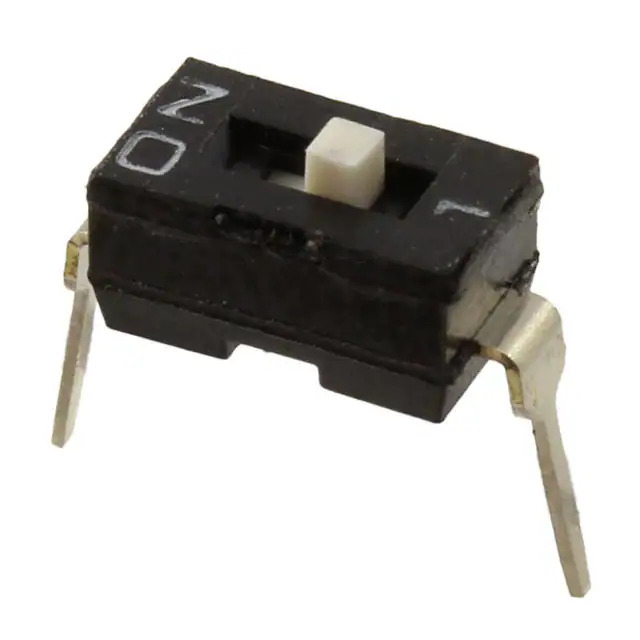

KAE01LAGT E-Switch
Same model may have multiple batches, images only for reference.

KAE01LAGT

Part No KAE01LAGT
Manufacturer E-Switch
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Datasheet
KAE01LAGT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr E-Switch
Series KAE
Package Tube
Product Status Active
Circuit SPST
Number of Positions 1
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Copper
Contact Finish Gold
Height Above Board 0.169" (4.30mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Features -
Temperature Range - Operating -20°C ~ 85°C
Body Material -
Length 0.141" (3.58mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number KAE01
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376372-KAE01LAGT
Ultra Librarian 3D Model Ultra Librarian KAE01LAGT CAD Model

Description

The KAE01LAGT is a DIP switch from E-Switch.

  • Mounting Type: Through-Hole
  • Circuit: SPST
  • Current Rating: 25mA
  • Voltage Rating: 24VDC
  • Pitch: 0.100" (2.54mm)
  • Mechanical Life: 2,000 cycles
  • Contact Finish: Gold
  • Actuator Level: Raised
  • Termination Style: PC pin
  • REACH: Unaffected
  • ECCN: EAR99
  • Manufacturer: E-Switch
