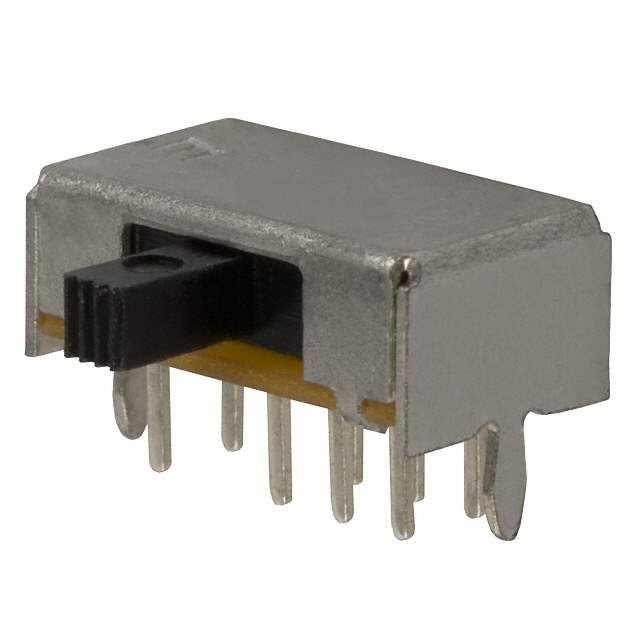

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer E-Switch
Packaging Bulk
Status Active
Circuit DP3T
Contact Timing Not Specified
Switch Function On-On-On
Current Rating 200mA (DC)
Voltage Rating - DC 30V
Actuator Type Standard
Actuator Length 4.00mm
Contact Finish Silver
Mounting Through Hole, Right Angle
Termination Style PC Pin
Switch Travel 2.00mm
Temperature Range - Operating -20°C to 70°C
Operating Force 250/350gf
Win Source Part Number 1040493-EG2310A
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EG2310A CAD Model

Description

The EG2310A is a DP3T switch from E-Switch.

  • Manufacturer: E-Switch
  • Part Type: DP3T Switch
  • Current Rating: 200mA
  • Voltage Rating: 30VDC
  • Mounting Type: Through-hole, Right Angle
  • Termination Style: PC Pin
  • Switch Function: On-On-On
  • Operating Force: 250/350gf
  • Supply and Demand Status: Sufficient
