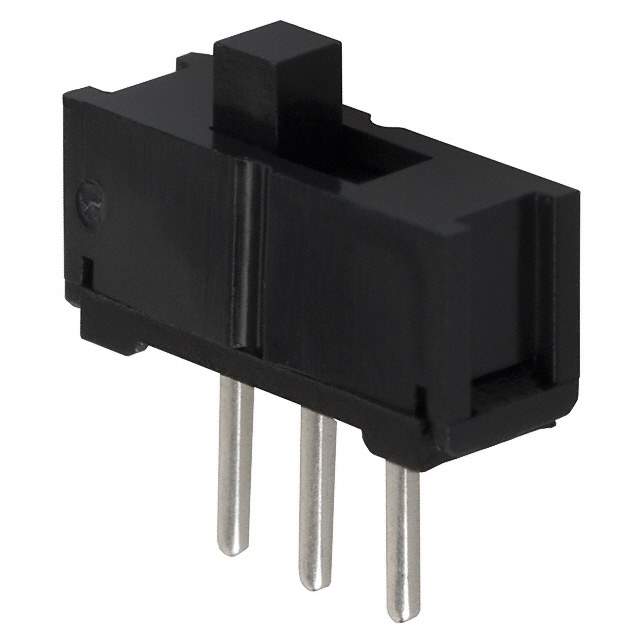

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr E-Switch
Series EG
Package Bulk
Product Status Active
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 200mA (DC)
Voltage Rating - DC 30 V
Actuator Type Standard
Actuator Length 2.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features -
Temperature Range - Operating -20°C ~ 70°C
Actuator Material -
Switch Travel 2.50mm
Mechanical Life -
Electrical Life -
Operating Force 250gf
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376210-EG1218
Ultra Librarian 3D Model Ultra Librarian EG1218 CAD Model

Description

The EG1218 is a slide switch manufactured by E-Switch.

  • Series: EG
  • Mounting Type: Through-Hole
  • Operating Temperature: -20°C to 70°C
  • Current Rating: 200mA (DC)
  • Voltage Rating: 30V DC
  • Circuit: SPDT
  • Switch Travel: 2.50mm
  • Operating Force: 250gf
  • Contact Material: Copper Alloy
  • Contact Finish: Silver
