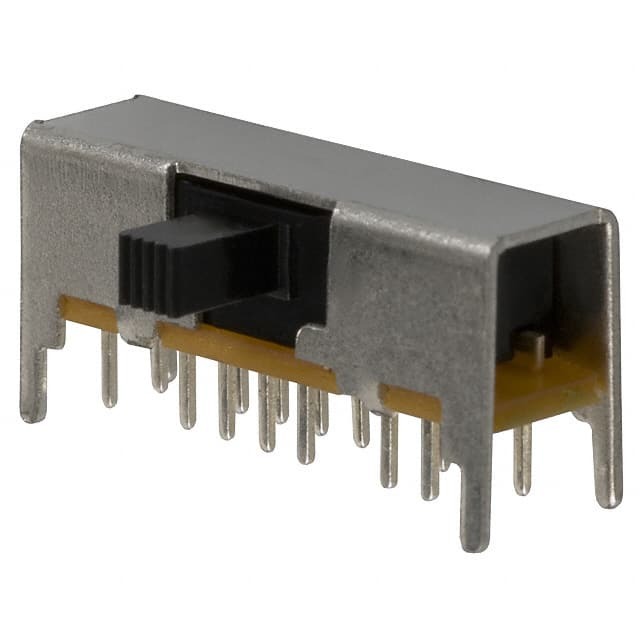

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr E-Switch
Series EG
Package Bulk
Product Status Active
Circuit 4P3T
Contact Timing Not Specified
Switch Function On-On-On
Current Rating (Amps) 200mA (DC)
Voltage Rating - DC 30 V
Actuator Type Standard
Actuator Length 5.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 2.00mm
Operating Force 250/400/600gf
Standard Package 200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 850281-EG4319
Ultra Librarian 3D Model Ultra Librarian EG4319 CAD Model

Description

The 850281-EG4319 is a slide switch designed for switches.

  • Series: EG
  • Termination Style: PC Pin
  • Contact Finish: Silver
  • Contact Material: Copper Alloy
  • Voltage Rating: 30 VDC
  • Current Rating: 200mA
  • Circuit: 4P3T
  • Switch Function: On-On-On
  • Actuator Type: Standard
  • Actuator Length: 5.00mm
  • Switch Travel: 2.00mm
  • Operating Force: 250/400/600gf
  • Standard Package Quantity: 200 pieces
  • Manufacturer: E-Switch
  • Product Status: Active
