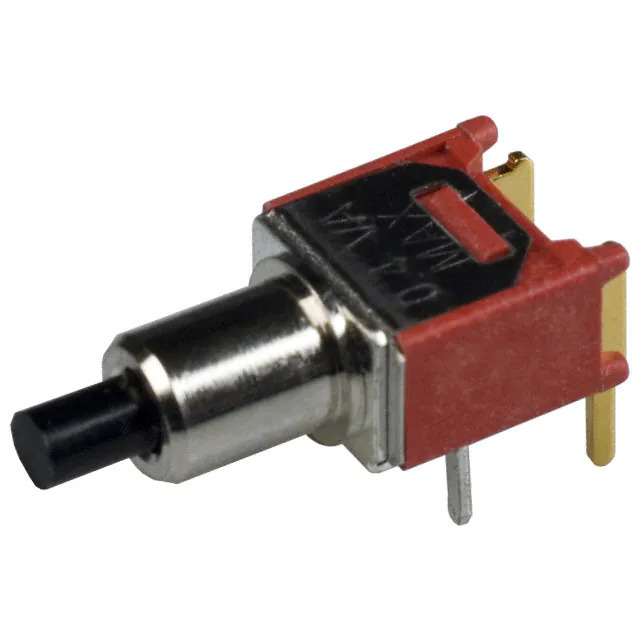

800SP9B6M6RE E-Switch
Same model may have multiple batches, images only for reference.

800SP9B6M6RE

Part No 800SP9B6M6RE
Manufacturer E-Switch
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 0.4VA 20V
Datasheet
800SP9B6M6RE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr E-Switch
Series 800
Package Bulk
Product Status Active
Mounting Type Through Hole, Right Angle
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection -
Features -
Panel Cutout Dimensions -
Temperature Range - Operating -30°C ~ 85°C
Mechanical Life 50,000 Cycles
Electrical Life 50,000 Cycles
Base Product Number 800SP9
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376060-800SP9B6M6RE
Ultra Librarian 3D Model Ultra Librarian 800SP9B6M6RE CAD Model

Description

The 800SP9B6M6RE is a pushbutton switch from the 800 series manufactured by E-Switch.

  • Type: Standard
  • Mounting Style: Through-Hole, Right-Angle
  • Voltage Rating: 20V AC and 20V DC
  • Circuit: SPST-NO (Single Pole Single Throw Normally Open)
  • Switch Function: Off-Mom (Momentary Off)
  • Actuator Type: Round, Plunger-Shaped
  • Actuator Color: Black
  • Termination Style: PC Pin
  • Mechanical Life: 50,000 cycles
