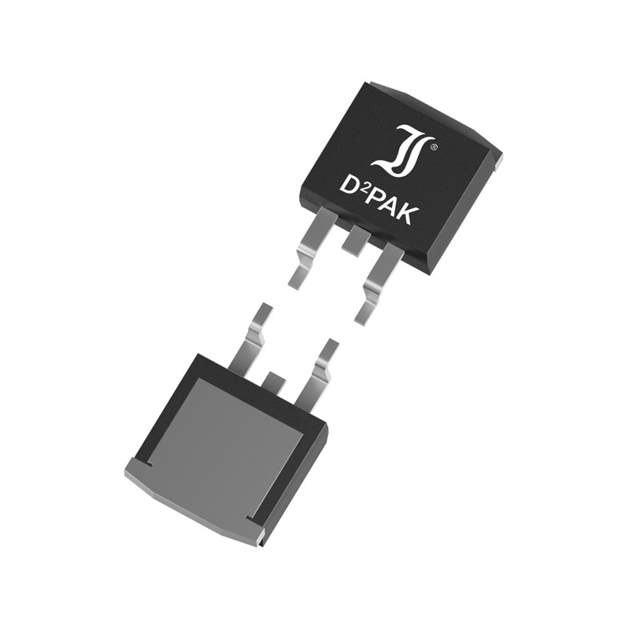

SK2045CD2 Real Image
Same model may have multiple batches, images only for reference.

SK2045CD2

Part No SK2045CD2
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Arrays
Description SchottkyD, 45V, 20A  /  Diode Array 1 Pair Common Cathode Schottky 45 V 10A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Diotec Semiconductor
Package Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 10 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 300 µA @ 45 V
Operating Temperature - Junction -50°C ~ 150°C
Mounting SMD (SMT)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263AB (D2PAK)
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0000
Other Names 2721-SK2045CD2
Standard Package 50
Win Source Part Number 1066551-SK2045CD2
Ultra Librarian 3D Model Ultra Librarian SK2045CD2 CAD Model

Description

The electronic component with Win Source Part Number 1066551-SK2045CD2 is a Schottky diode with a maximum DC reverse voltage of 45V. Bold the product name (e.g., BAV99S,135 → Schottky diode) and manufacturer (e.g., Nexperia USA Inc. → Diotec Semiconductor).

  • Win Source Part Number: 1066551-SK2045CD2
  • Maximum DC Reverse Voltage: 45V
  • Recovery Speed: Less than 500ns
  • Forward Voltage: 550mV @ 10A
  • Diode Configuration: 1 pair common cathode
  • Average Rectified Current: 10A per diode
  • Package: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Alternative Parts: MBRB20100CTTRLP
