Same model may have multiple batches, images only for reference.

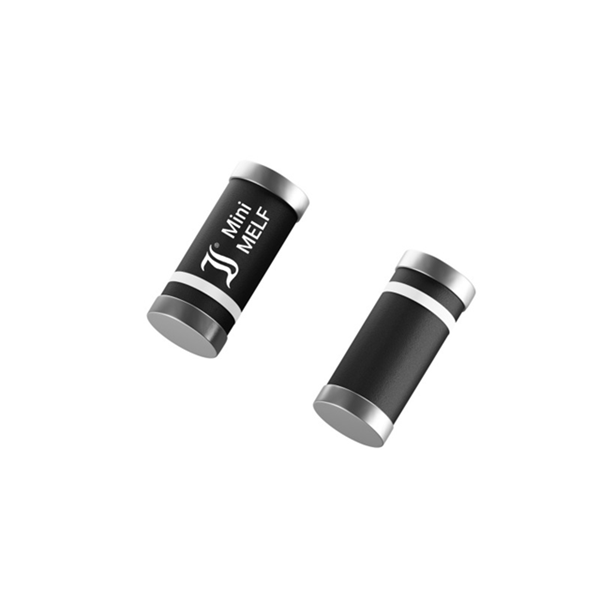

SGL1-60 Real Image
Same model may have multiple batches, images only for reference.

SGL1-60

Part No SGL1-60
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Single
Description SchottkyD, 60V, 1A  /  Diode Schottky 60 V 1A Surface Mount DO-213AA, MINI-MELF
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Diotec Semiconductor
Package Tape & Reel (TR)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 670 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 60 V
Mounting SMD (SMT)
Package / Case DO-213AA
Supplier Device Package DO-213AA, MINI-MELF
Operating Temperature - Junction -50°C ~ 150°C
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0000
Other Names 2721-SGL1-60TR
Standard Package 30
Win Source Part Number 1186502-SGL1-60
Ultra Librarian 3D Model Ultra Librarian SGL1-60 CAD Model

Description

The Diotec Semiconductor SGL1-60TR is a Schottky diode used in rectifier applications. It has a fast recovery speed of <500ns and a current rating of 1A. The voltage - DC reverse (Vr) (Max) is 60V and the voltage - forward (Vf) (Max) @ If is 670 mV @ 1 A. It is RoHS non-compliant and has a Win Source Part Number of 1186502-SGL1-60. The package / case is DO-213AA and the supplier device package is DO-213AA, MINI-MELF.
