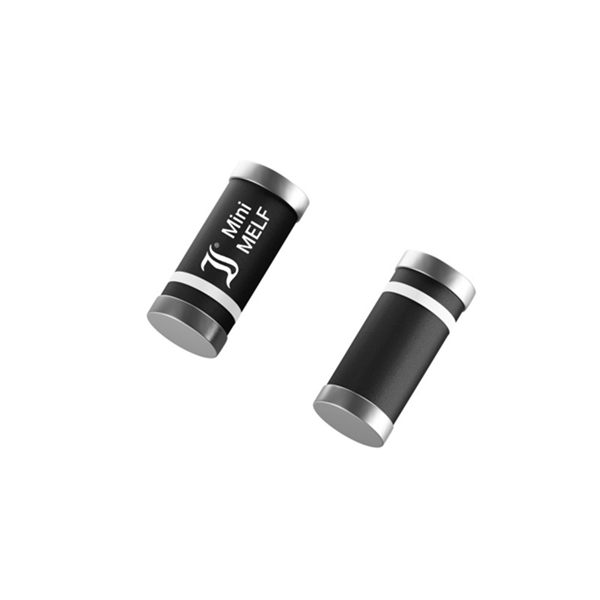

GL1J Real Image
Same model may have multiple batches, images only for reference.

GL1J

Part No GL1J
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Single
Description ST Rect, 600V, 1A / Diode Standard 600 V 1A Surface Mount DO-213AA, MINI-MELF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Diotec Semiconductor
Packaging Reel - TR
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 1 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.5 µs
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Mounting Surface Mount
Case / Package DO-213AA
Supplier Device Package DO-213AA, MINI-MELF
Operating Temperature - Junction -50°C ~ 175°C
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0000
Other Part Number 2721-GL1JTR
Standard Package 625
Win Source Part Number 1324261-GL1J
Ultra Librarian 3D Model Ultra Librarian GL1J CAD Model

Description

The 1324261-GL1J is a surface mountable standard diode from Diotec Semiconductor.

  • Voltage Rating: 600V
  • Average Rectified Current: 1A
  • Forward Voltage: 1.3V @ 1A
  • Reverse Recovery Time: 1.5µs
  • Current Leakage: 5µA @ 600V
  • Operating Temperature Range: -50°C to 175°C
  • Supplier Device Package: DO-213AA, MINI-MELF
  • ROHS3 Compliant: true
