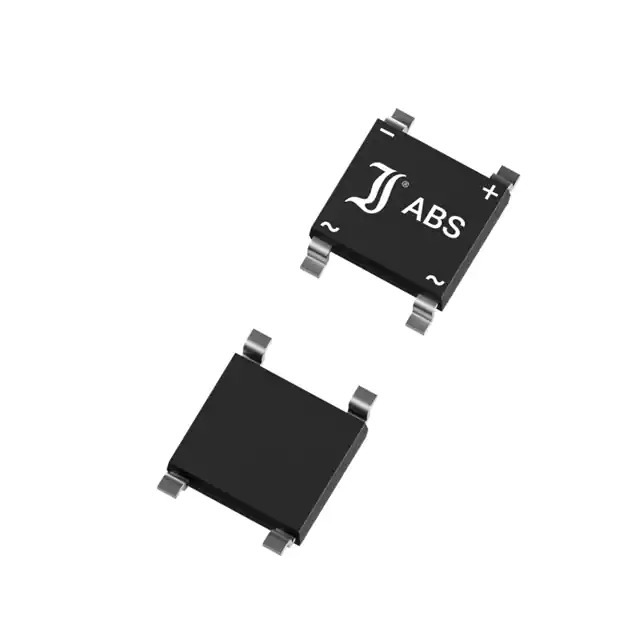

ABS2 DIOTEC Electronics Corporation
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Diotec Semiconductor
Series -
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200 V
Current - Average Rectified (Io) 800 mA
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 800 mA
Current - Reverse Leakage @ Vr 5 µA @ 200 V
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package ABS
MSL Level 1 (Unlimited)
HTSUS 8541.10.0000
Win Source Part Number 1367910-ABS2
Ultra Librarian 3D Model Ultra Librarian ABS2 CAD Model

Description

The 1367910-ABS2 is a bridge rectifier diode from Diotec Semiconductor.

  • Category: Diodes
  • Package Type: 4-SMD, Gull Wing
  • Mounting Type: Surface Mount
  • Current Rating: 800 mA
  • Maximum Forward Voltage: 1.1 V @ 800 mA
  • Reverse Leakage Current: 5 µA @ 200 V
  • Peak Reverse Voltage: 200 V
  • Operating Temperature Range: -50°C to 150°C
  • Technology: Standard
