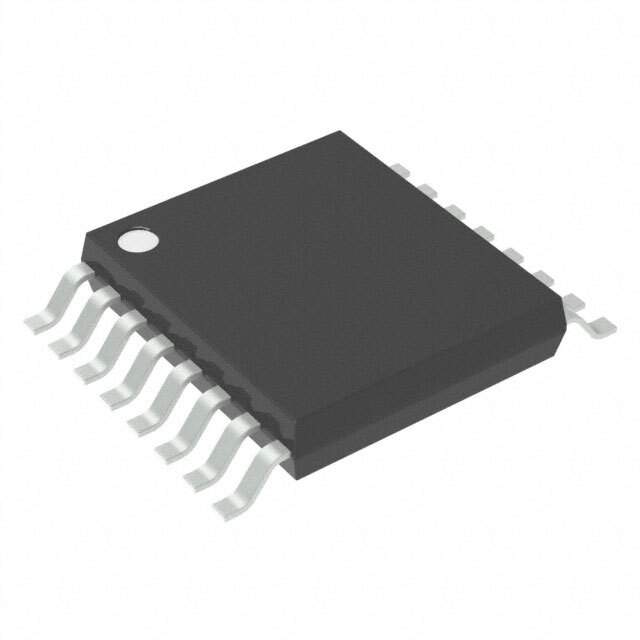

Diodes Incorporated ZXLD1370QESTTC - LED Driver IC

The ZXLD1370QESTTC from Diodes Incorporated is a highly efficient, easy-to-use LED driver IC designed to drive high-brightness LEDs with a constant current for optimal performance. This device is suitable for a wide range of applications, including automotive lighting, general illumination, and backlighting systems. With its compact package and integrated features, the ZXLD1370QESTTC offers a robust and reliable solution for advanced LED lighting systems.

Key Features:

• Adjustable Output Current: The IC allows for precise control of the LED current from 0.3A up to 1A, which can be set via an external resistor. This flexibility ensures compatibility with a variety of LEDs, optimizing light output and efficiency.
• High Efficiency: With an efficiency of up to 94%, the ZXLD1370QESTTC helps to minimize power loss, ensuring that the majority of the power is used for illumination rather than being wasted as heat.
• Wide Input Voltage Range: The device supports a broad input voltage range from 6V to 60V, making it versatile for use in different power environments and applications.
• Built-in Thermal Protection: To safeguard the IC and the LEDs it drives, the ZXLD1370QESTTC incorporates thermal shutdown protection, which automatically reduces the output current if the junction temperature exceeds the thermal threshold.
• PWM Dimming Capability: The IC supports PWM dimming, which allows for precise control over the brightness of the LEDs without affecting the color. This feature is essential for applications that require variable light intensity.

Applications:

• Automotive exterior and interior lighting
• Commercial and residential LED lighting
• LED backlighting for LCD displays
• Street and architectural lighting

The ZXLD1370QESTTC is provided in a thermally enhanced MSOP-10EP package, which aids in heat dissipation and ensures stable operation even under high power conditions. Its small footprint and lead-free construction make it an environmentally friendly choice for modern LED lighting solutions. With its combination of performance, efficiency, and flexibility, the ZXLD1370QESTTC is an ideal driver IC for designers looking to create sophisticated LED lighting systems.
