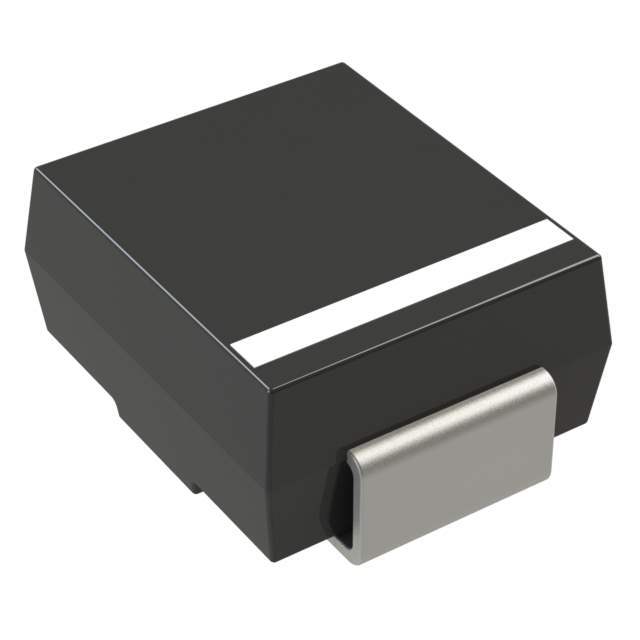

Same model may have multiple batches, images only for reference.
SMBJ33CAQ-13-FDiodes Incorporated
Same model may have multiple batches, images only for reference.

SMBJ33CAQ-13-F

Part No SMBJ33CAQ-13-F
Manufacturer Diodes Incorporated
Catalog TVS - Diodes
Description TVS DIODE 33VWM 53.3VC SMB
Datasheet
SMBJ33CAQ-13-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Part Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 33V
Voltage - Breakdown (Min) 36.7V
Voltage - Clamping (Max) @ Ipp 53.3V
Current - Peak Pulse (10/1000µs) 11.3A
Power - Peak Pulse 600W
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Win Source Part Number WS1309464-SMBJ33CAQ-13-F
Ultra Librarian 3D Model Ultra Librarian SMBJ33CAQ-13-F CAD Model

Description

Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against electrostatic discharges according to ISO10605. Compliance with the following standards:

• ISO10605, C = 150pF, R = 330Ω:
▪ 30kV (Air Discharge)
▪ 30kV (Contact Discharge)

• ISO7637-2 (Note 5)
▪ Pulse 1: Vs = -150V
▪ Pulse 2a: Vs = +112V
▪ Pulse 3a: Vs = -220V
▪ Pulse 3b: Vs = +150V
