Same model may have multiple batches, images only for reference.

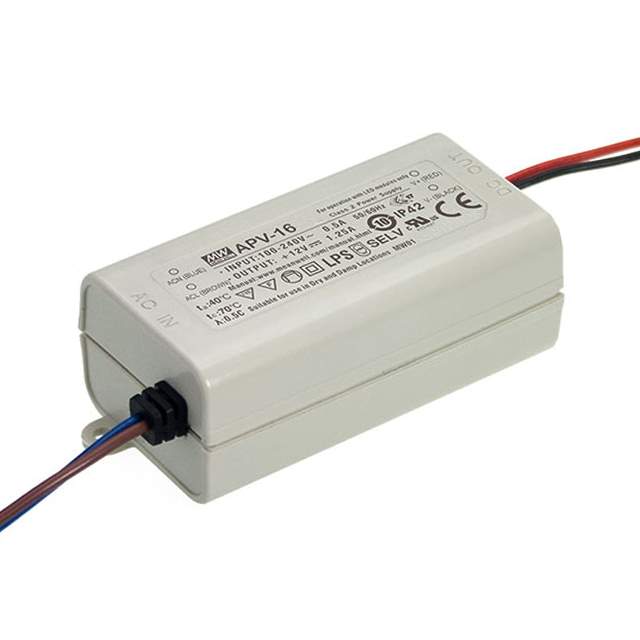

APV-16-12 Real Image
Same model may have multiple batches, images only for reference.

APV-16-12

Part No APV-16-12
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRIVER CV AC/DC 12V 1.25A / 1.25A 12V Constant Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet
APV-16-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series APV-16 (16W)
Package Box
Type Constant Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 264VAC
Voltage - Output 12V
Current - Output (Max) 1.25A
Power (Watts) 15 W
Voltage - Isolation 3.75 kV
Features OCP, OVP, SCP
Ratings IP42
Temperature Range - Operating -30°C ~ 70°C
Efficiency 80%
Termination Style Wire Leads
Dimension 3.03" L x 1.57" W x 1.14" H (77.0mm x 40.0mm x 29.0mm)
Approval Agency CB, CCC, CE, cURus, ENEC
Mounting Type Chassis Mount
Base Product Number APV-16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names APV-16-12-ND,APV-16-12-PH,1866-1146
Standard Package 120
Win Source Part Number 995049-APV-16-12
Ultra Librarian 3D Model Ultra Librarian APV-16-12 CAD Model

Description

MEAN WELL USA Inc.'s APV-16-12 is a constant voltage LED driver that comes with OCP, OVP, and SCP features.

  • Series: APV-16 (16W)
  • Power Output: 15W
  • Voltage Output: 12V
  • Voltage Isolation: 3.75kV
  • Efficiency: 80%
  • Operating Temperature Range: -30°C to 70°C
  • Mounting: Chassis
  • Package: Box
