The SMAJ160CA-13-F is a robust transient voltage suppression (TVS) diode designed by Diodes Incorporated to protect sensitive electronic equipment from voltage spikes and transients. This high-quality component is engineered to shield circuits against the detrimental effects of voltage surges that can result from lightning strikes, electrostatic discharge (ESD), and other sudden power anomalies. Its bidirectional clamping feature makes it an ideal choice for AC applications or where the polarity is reversible.

Key Features

• Peak Pulse Power: The SMAJ160CA-13-F can handle 400W peak pulse power dissipation for a 10/1000μs waveform, ensuring robust protection against high energy transients.
• Standoff Voltage: It has a standoff voltage of 160V, which helps to prevent overvoltage conditions by blocking voltages above this threshold.
• Clamping Voltage: The component provides a clamping voltage of 259V, which is the maximum voltage the device will pass to the protected components during a transient event.

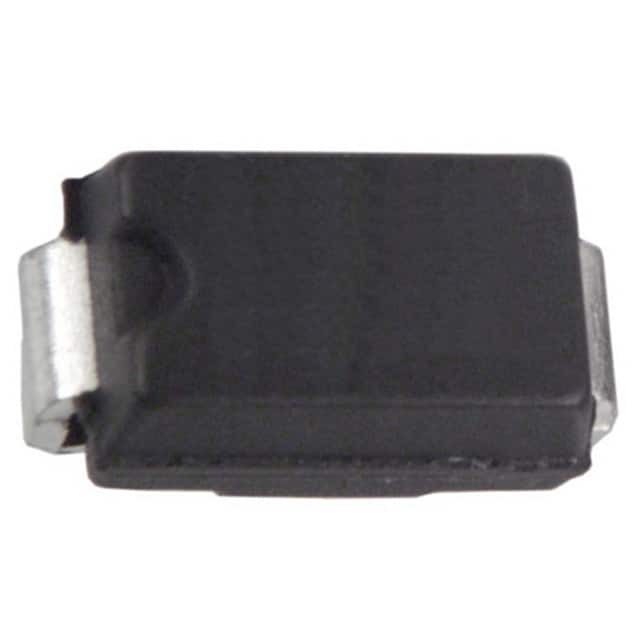

• Package: Housed in a low-profile DO-214AC (SMA) package, the SMAJ160CA-13-F is designed for surface mount applications, offering a compact footprint and easy integration into a wide range of electronic assemblies.
• Operating Temperature: It operates over a wide temperature range from -55°C to +150°C, ensuring reliability in diverse environmental conditions.
• Compliance: This TVS diode is compliant with the RoHS and REACH standards, reflecting Diodes Incorporated's commitment to environmental responsibility.

Applications

The SMAJ160CA-13-F is suitable for a variety of applications that require transient voltage protection. It is commonly used in:

• Consumer electronics such as TVs, computers, and other multimedia devices
• Communication systems including cell phones and networking equipment
• Industrial control systems
• Automotive electronics
• Portable devices and battery-operated electronics

With its exceptional performance and reliability, the SMAJ160CA-13-F from Diodes Incorporated is a trusted component for safeguarding electronic circuits against voltage transients and surges, thereby ensuring the longevity and stable operation of the end product.
