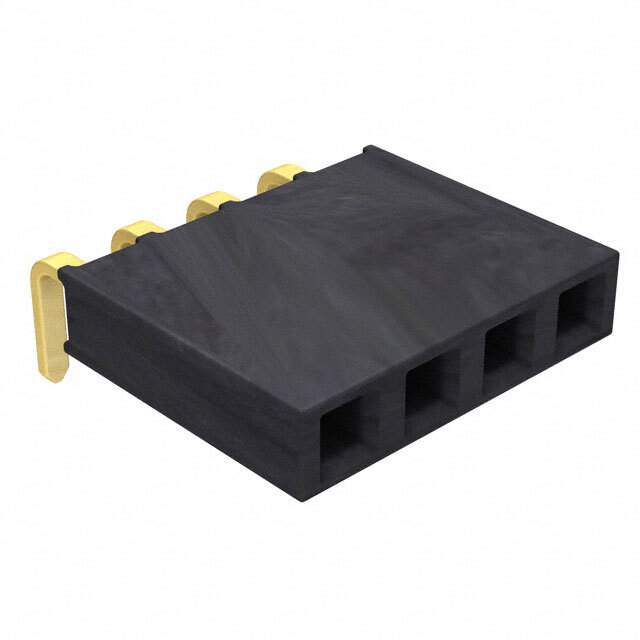

SSW-104-02-G-S-RA

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SSW-104-02-G-S-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSW-104-02-G-S-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Insulation Color	Black
Insulation Height	0.095" (2.41mm)
Contact Length - Post	0.100" (2.54mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SSW-104
Other Names	SAM1225-04
Standard Package	1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288429-SSW-104-02-G-S-RA
Ultra Librarian 3D Model	Ultra Librarian SSW-104-02-G-S-RA CAD Model

Alternative Products

Description

The SSW series female socket connector is designed for use in board-to-board or cable applications.

Contact Shape: Square
Contact Type: Forked
Contact Material: Phosphor bronze
Pitch: 0.100 inches (2.54mm)
Current: 4.7A per contact
Contact Finish (Mating): Gold, 20.0μin (0.51μm)
Contact Finish (Post): Gold, 3.00μin (0.076μm)
Mounting: Right-angle through-hole
Operating Temperatures: -55°C to 125°C
Flammability Rating: UL94 V-0
Insulation Material: Black liquid crystal polymer (LCP)
Packaging: Bulk
Standard Package: 1
