Product Overview: SMAJ10A-13-G by Diodes Incorporated

The SMAJ10A-13-G is a robust transient voltage suppressor (TVS) diode designed by Diodes Incorporated to protect sensitive electronic equipment from voltage spikes and transients induced by lightning and other transient voltage events. This component is specifically engineered to safeguard voltage-sensitive devices by clamping unwanted high-energy surges to a safe level, thereby preventing potential damage to the system.

Key Features

• Stand-off Voltage: The device has a stand-off voltage of 10V, which is the maximum voltage that can be applied over the TVS diode without causing it to conduct significantly.
• Peak Pulse Power: It offers an impressive peak pulse power dissipation rating of 400W for a 10/1000µs waveform, ensuring reliable protection against high energy transients.
• Clamping Voltage: The SMAJ10A-13-G provides a clamping voltage of 17V, which is the maximum voltage drop across the diode when subjected to a peak impulse current.
• Fast Response Time: With a response time of less than 1 picosecond from 0V to BV min, it delivers swift reaction to transient events, ensuring immediate protection for your circuitry.
• Low Incremental Surge Resistance: The device features low incremental surge resistance, which minimizes the voltage drop across the diode at the time of the surge event.

Applications

The SMAJ10A-13-G is ideal for use in a variety of applications where transient voltage protection is critical. Common applications include:

• Power Supply
• AC/DC Applications
• Telecommunication Systems
• Industrial Electronics
• Consumer Electronics

Package and Quality Assurance

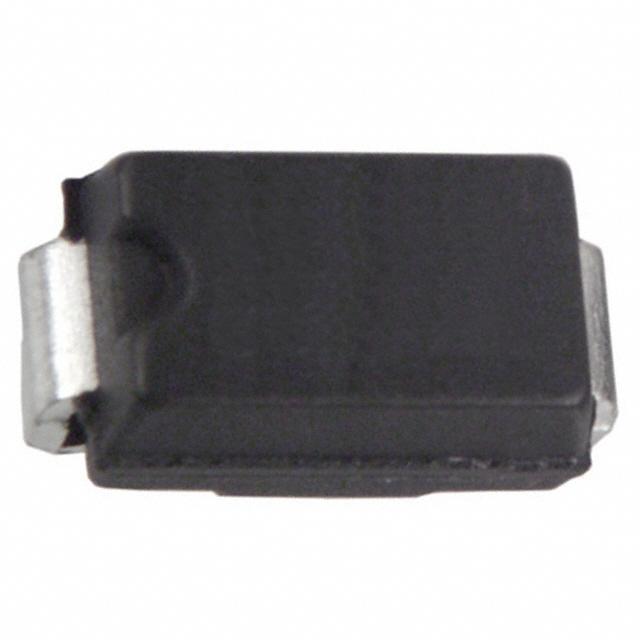

Encased in a DO-214AC (SMA) package, the SMAJ10A-13-G is designed for surface mount application, providing ease of integration into PCB designs. The component is RoHS compliant, ensuring adherence to the latest environmental standards. Moreover, Diodes Incorporated is known for its commitment to quality, and this product is no exception, meeting stringent industry standards for performance and reliability.
