The SBM340-13-F from Diodes Incorporated is a high-performance Schottky Barrier Rectifier designed for applications requiring low voltage drop and high efficiency. This rectifier is a state-of-the-art device that is ideal for use in power supply operations, and it is particularly suited for switching power supplies, converters, free-wheeling diodes, and reverse battery protection.

Key Features

• Low Forward Voltage Drop: The SBM340-13-F boasts a low forward voltage drop, which enhances system efficiency and reduces thermal issues, making it suitable for high-frequency applications.
• High Surge Current Capability: This product can handle high surge currents, providing robust performance during transient conditions.
• Power Dissipation: With a power dissipation of 3.0W, the SBM340-13-F can manage significant amounts of power, making it ideal for power-intensive applications.
• RoHS Compliant: The device is RoHS compliant, ensuring that it meets the latest environmental standards and regulations.

Electrical Characteristics

• Maximum Repetitive Reverse Voltage (Vrrm): 40V, suitable for various electronic circuits.
• Forward Continuous Current (If): 3A, indicating its capability to conduct a substantial current in the forward direction.
• Maximum Reverse Leakage Current (Ir): 500µA at 40V, illustrating the minimal current that flows in the reverse direction.

Applications

• Switching power supplies
• DC/DC converters
• Free-wheeling diodes in converters and motor control circuits
• Reverse battery protection
• Power management in portable devices and power tools

Package and Quality

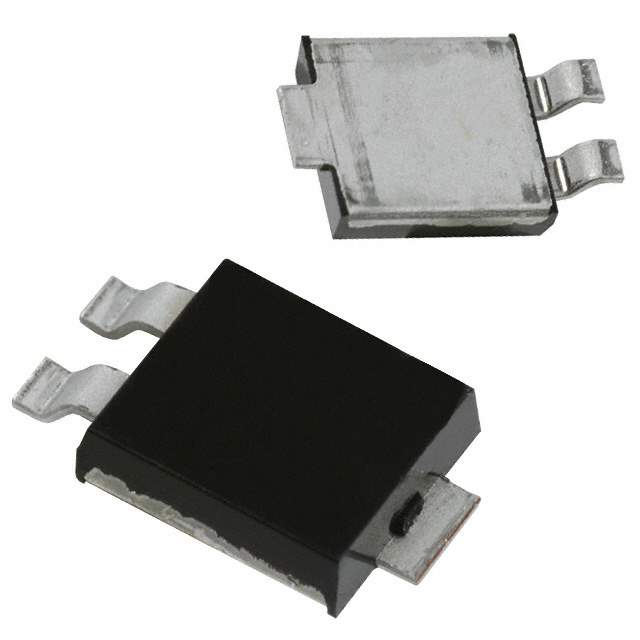

The SBM340-13-F is provided in an SMB package, which is compact and offers excellent power handling capability. This package is designed for automated assembly and is well-suited for high-volume production. Diodes Incorporated ensures that each device meets rigorous quality standards, providing reliability and performance that customers can trust.

Conclusion

With its combination of low forward voltage drop, high surge capability, and robust thermal performance, the SBM340-13-F Schottky Barrier Rectifier from Diodes Incorporated is an excellent choice for designers looking to improve efficiency and reliability in their power management systems. Its compliance with environmental standards and versatile applications make it a forward-thinking solution for modern electronic designs.
