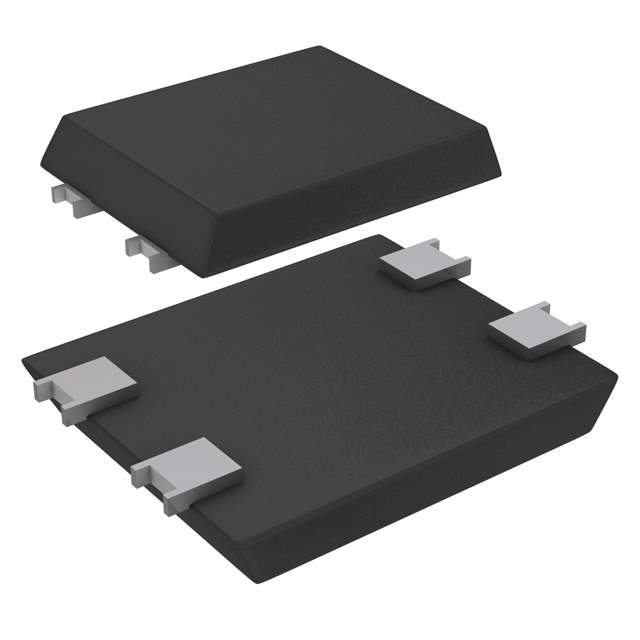

The RDBF2510-13 from Diodes Incorporated is a high-performance rectifier diode designed to offer efficient and reliable operation in a variety of electronic applications. This component is a vital piece in power management tasks, providing the necessary rectification capabilities for converting alternating current (AC) to direct current (DC) in power supplies, adapters, and other electronic devices.

Key Features

• High Current Capability: The RDBF2510-13 is capable of handling a high forward current of 25A, making it suitable for high-power applications.
• Low Forward Voltage Drop: It ensures energy efficiency with a low forward voltage drop, which minimizes power loss and heat generation during operation.
• High Surge Current Capability: This diode has the ability to manage high surge currents, providing robust performance during momentary overloads.
• Robust Design: The RDBF2510-13 is encapsulated in an R-6 package, offering a compact form factor while maintaining strong thermal performance and mechanical durability.
• Wide Operating Temperature Range: With an operating temperature range of -55°C to +150°C, it is designed to withstand extreme environmental conditions.

Applications

The RDBF2510-13 is versatile and can be used in a wide range of applications, including:

• Power supply units
• AC/DC converters
• Free-wheeling diodes in inverter circuits
• Motor controllers
• Automotive applications requiring high reliability

Technical Specifications

Parameter Value Package Type R-6 Maximum Repetitive Reverse Voltage 1000V Average Rectified Forward Current 25A Operating Temperature Range -55°C to +150°C Storage Temperature Range -55°C to +150°C

Overall, the RDBF2510-13 from Diodes Incorporated is a solid choice for designers seeking a reliable and efficient rectifier diode capable of meeting the demands of high-power and high-voltage applications.
